| Model Number: | KL57879865796 |
| MOQ: | 20 |
| Price: | USD28-68889 |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T,Western Union |
| Attribute | Value |
|---|---|
| Shape | Rectangular |
| Ventilation | Yes |
| Size | Customizable |
| Waterproof | Yes |
| Weight | Customizable |
| Usage | Indoor / Outdoor/Laundry/Gym |
| Corrosion Resistance | Yes |
| Material | Metal |
| Installation | Wall mounted / Floor Standing/Pole mounted |
| Lock Type | Key Lock |
| Number Of Doors | 1 or 2 |
| Fireproof | No |
| Color | Grey / Others |

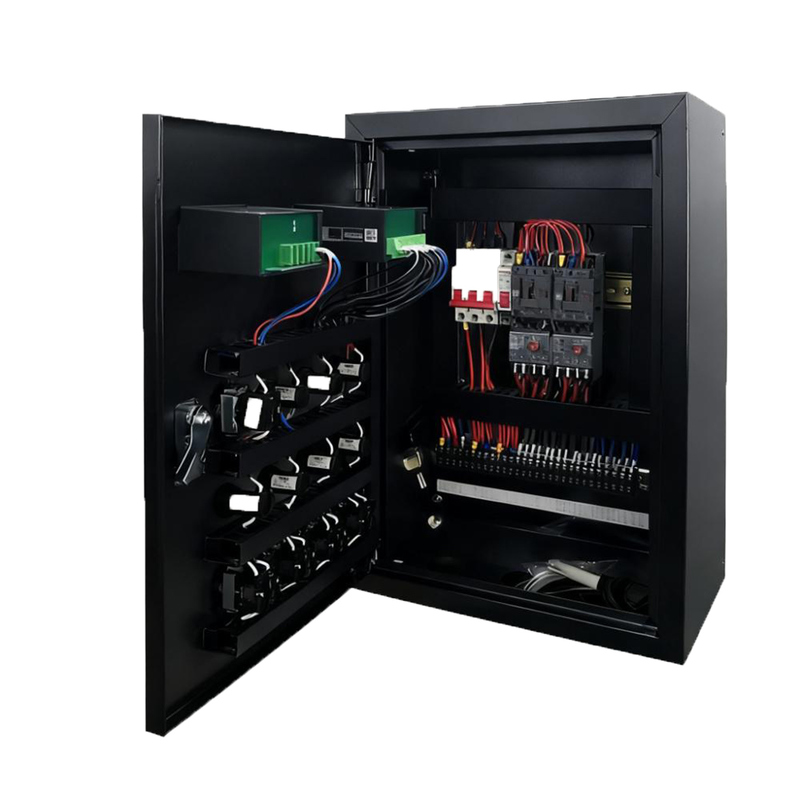

• Efficiently distributes and manages power for laundry equipment such as washing machines, dryers, and ironing stations.
• Controls lighting, ventilation, and safety systems in gyms and fitness centers.
• Ensures reliable, safe, and organized operation of multiple electrical loads in commercial and residential facilities.
• Ideal for hotels, residential complexes, gyms, and industrial laundry rooms.
| Technical Dimension | Core Requirements |
| Electrical Performance | Adapt to local voltage (single-phase 110V/220V, three-phase 380V/415V) and frequency (50/60Hz); rated current 30-200A (determined by total power of equipment); short-circuit withstand current 10-50kA, equipped with overload protection; grounding resistance ≤4Ω. |
| Control Function | Shunt switch control (circuit breakers/contactors); optional intelligent remote monitoring and audible-visual fault alarm (for overload/short circuit, etc.). |
| Protection & Structure | Protection class ≥IP54; enclosure made of cold-rolled steel with spray coating/304 stainless steel; equipped with heat dissipation holes/fans; separate layout of strong and weak electricity inside. |
| Environmental Adaptability | Operating temperature -10℃~50℃, humidity 10%-90%RH (no condensation), suitable for the humid environment of laundries and dusty environment of gyms. |
