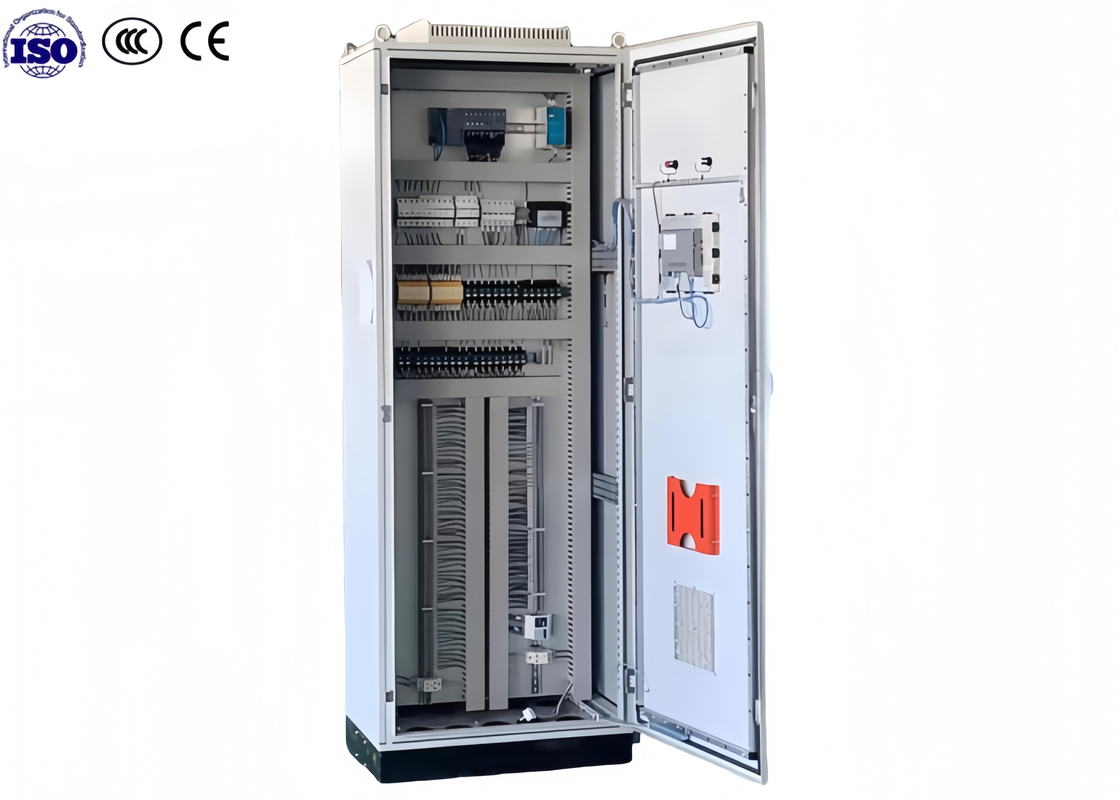

Customizable Single Door PLC Control Panel Cabinet For Rainwater Harvesting System

Model Number:	JL84165465
MOQ:	5
Price:	USD28-68889
Delivery Time:	15 days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001 ， CE

Features:

Durable, Waterproof, Fireproof

Usage:

Electrical Cabinet，PLC Control Panel

Thickness:

1.5mm Or More

Accessories:

Hinges, Handles, Screws

Type:

Cabinet

Material:

Metal

Structure:

Single Door

Shape:

Rectangular

Installation:

Wall Mounted，free Standing

Surface Treatment:

Powder Coating

Lock Type:

Key Lock

Size:

Customizable

Color:

Grey Or Others

Packaging Details:

wooden case packaging

Highlight:

PLC Cabinet For Rainwater Harvesting System

Single Door PLC Control Panel Cabinet

Customizable PLC Control Panel Cabinet

Product Description

Rainwater Harvesting System PLC Control Cabinet Logical Linkage

Product Description

Equipment Control: Through built-in controllers (such as PLCs, microprocessors), it automatically or manually controls the start and stop of rainwater collection pumps, filtration equipment, disinfection equipment, water supply pumps, and valves, enabling fully automated operation from rainwater collection to reuse.
Status Monitoring: Utilizes various sensors (liquid level sensors, water quality sensors, pressure sensors) to monitor parameters like water level, water quality, and pipeline pressure in real-time, with data displayed on the control box or backend system.
Fault Alarm: Automatically triggers alarms (sound/light alarms, remote notifications) when system abnormalities occur (pump failures, abnormal water levels, substandard water quality) to prompt immediate maintenance.
Logical Linkage: Implements device coordination based on preset programs and sensor feedback, such as automatically closing collection pumps when water levels reach upper limits or switching to municipal supply when levels are too low.

Product Attributes

Attribute	Value
Usage	Electrical Cabinet, PLC control panel
Thickness	1.5mm or more
Accessories	Hinges, Handles, Screws
Type	Cabinet
Features	Durable, Waterproof, Fireproof
Material	Metal
Structure	Single Door
Shape	Rectangular
Installation	Wall Mounted, free standing
Surface Treatment	Powder Coating
Lock Type	Key Lock
Size	Customizable
Color	Grey or others

Specifications

Type	Dimensions (H × W × D, mm)	Notes
Regular Sizes	1630×900×560	Suitable for larger systems with more control equipment and wiring
Regular Sizes	1200×600×300	Common size for general-scale systems, easy to install and maintain
Regular Sizes	800×400×1800	Tall design for vertical equipment layout in space-constrained areas
Regular Sizes	2000×800×550	Large size for complex control components in major projects
Custom Sizes	As required	Fully customizable for special shapes, space constraints, or project requirements

Material Options

Aluminum alloy
Stainless steel
Carbon steel

Installation & Selection Suggestions

Space Considerations: Choose compact designs for tight spaces; use IP65+ stainless steel enclosures with waterproof gaskets for outdoor/damp areas; select lightweight aluminum for wall mounting with reinforced brackets.
System Scale: Compact boxes for small systems; spacious enclosures with separated strong/weak current zones for large systems with multiple PLCs and relays.
Usability Features: Include touchscreens/physical buttons for manual operation; add detachable panels, waterproof cable entries, and dedicated maintenance compartments.
Future-Proofing: Integrate 4G/WiFi for remote monitoring; reserve ports for additional sensors and modules to accommodate system upgrades.
