| Model Number: | JL1561541560 |
| MOQ: | 10 |
| Price: | USD28-68889 |
| Delivery Time: | 25 Days |
| Payment Terms: | T/T,Western Union |
| Attribute | Value |
|---|---|

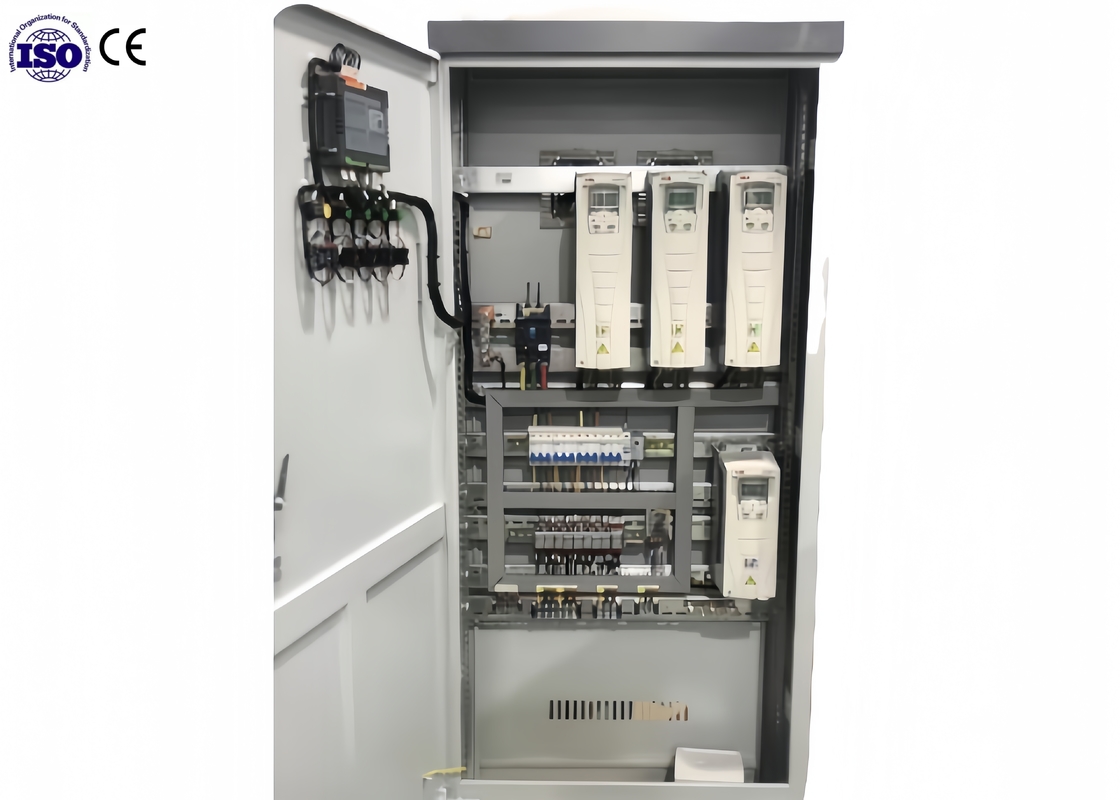

| Usage | Electrical equipment storage/ Industrial/ VFD Control Cabinet |
| Weight | Varies based on size |
| Ventilation | Yes |
| Mounting Type | Wall-mounted, Floor Standing, Pole Mount |
| Fireproof | No |
| Waterproof | Yes |
| Certifications | CE |
| Shape | Rectangular |
| Number Of Shelves | Adjustable |
| Number Of Doors | Single/Double |
| Size | Customizable |
| Material | Metal |
| Lock Type | Key lock |
| Color | Grey/Others |
| Type | Common Dimensions (H × W × D, mm) |
|---|---|
| Wall-mounted | 330 × 550 × 466 (6U) 612 × 600 × 300 (12U) 600 × 600 × 462 (12U) 914 × 620 × 762 (19U) |
| Floor-standing | 1400 × 600 × 500 1800 × 800 × 600 2000 × 1000 × 600 2200 × 800 × 800 1800 × 1200 × 400 2000 × 1600 × 500 |
| Special Sizes (Converted from Imperial) | 508 × 508 × 254 (20in×20in×10in) 762 × 762 × 254 (30in×30in×10in) |
| Custom | Custom on requirement |
| IP Rating | Protection Capability Description | Application Scenarios | Special Requirements for Mid Steel Cabinets |
|---|---|---|---|
| IP20 | Protects against ≥12.5mm solids/No water protection | Dry indoor environments (electrical rooms, server rooms) | Standard steel plate, no special sealing required |
| IP54 | Dustproof + Splash-proof | Industrial workshops (light dust/humidity) | Door gaps require sealing strips |
| IP55 | Dustproof + Low-pressure water jet protection | Outdoor uncovered areas | Full weld seams required, surface powder coating |
| IP65 | Complete dustproof + High-pressure water jet protection | Harsh environments (ports, mines, etc.) | Double sealing structure + Drainage design |
| IP66 | Complete dustproof + Powerful water jet protection | Ship decks, petrochemical plants | 304 stainless steel hinges + Pressure relief valve |
| IP67 | Complete dustproof + Temporary immersion protection (1m/30min) | Underground projects, flood control facilities | Fully welded enclosure + Waterproof cable glands |
