Customizable Water Treatment Control Cabinet Enclosure for Sewage/Agricultural/Industrial Use

Brand Name:	HMD
Model Number:	H21564151561

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Controltype:

PLC-based / Microcontroller-based

Cableentry:

Bottom And Top Knockouts

Protectionlevel:

IP54 / IP65

Waterproof:

Yes

Accessoriesincluded:

Mounting Brackets, Screws

Weight:

Customizable

Installation Method:

Wall Mounted

Number Of Doors:

Single/Double

Powersupplyfrequency:

50Hz / 60Hz

Product Type:

Control Cabinet

Material:

Cold Rolled Steel / Stainless Steel

Output Voltage:

24VDC

Highlight:

customizable water treatment control cabinet

sewage treatment control cabinet enclosure

industrial water control cabinet with warranty

Product Description

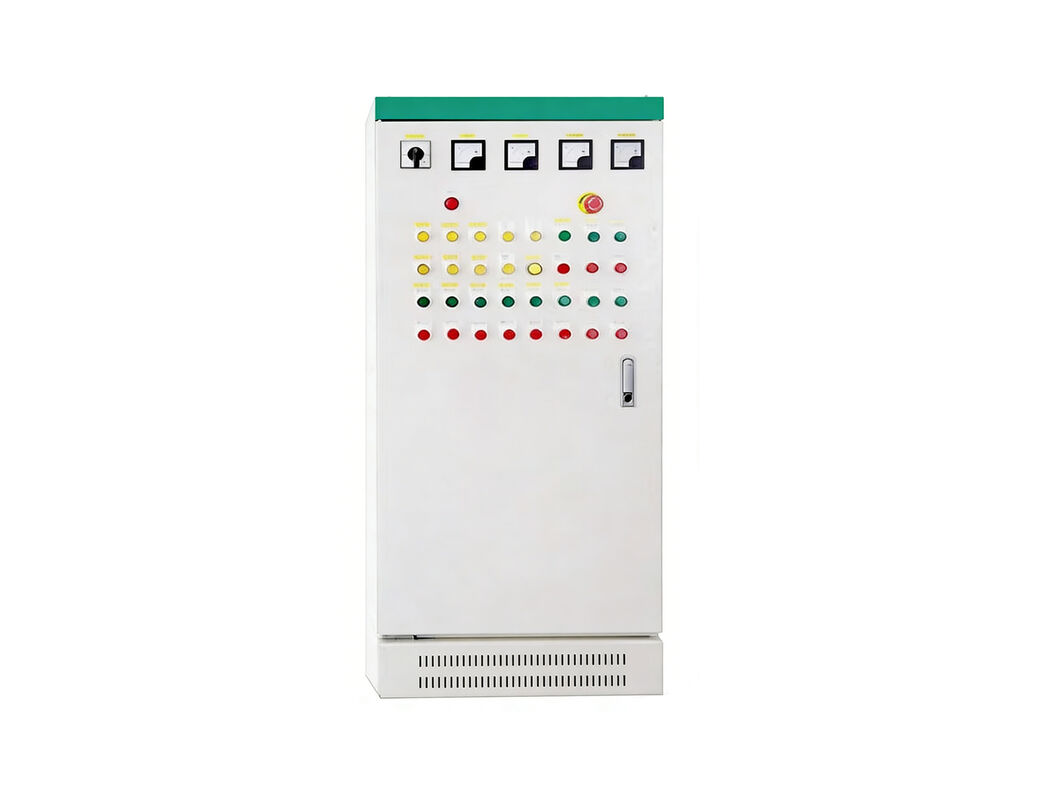

Customizable Water Treatment Control Cabinet Enclosure

Professional protective enclosure designed for sewage, agricultural, and industrial water treatment applications, safeguarding internal electrical components from environmental damage.

Product Overview

This water treatment control box enclosure provides robust protection for electrical components including contactors, circuit breakers, and PLC systems. Constructed from high-quality cold-rolled steel plate (SPCC) or 304/316 stainless steel, it features comprehensive anti-corrosion, anti-rust, and dust-proof treatments for exceptional durability in harsh working environments.

The sealed structure with rubber sealing strips around the door effectively prevents water vapor, dust, and corrosive gases from entering, minimizing component failures. Equipped with lockable removable doors and internal standardized mounting rails for convenient installation, debugging, and maintenance. Complies with IP54/IP65 international electrical protection standards.

Standard Dimensions

Regular dimensions designed to match common low-voltage water treatment control boxes. Shell thickness ranges from 1.2-2.0mm, adjustable based on material and load-bearing requirements.

Model	Length (L) mm	Width (W) mm	Height (H) mm	Shell Thickness	Application
WE-ED-250	250	200	350	1.2mm	Mini water treatment control boxes
WE-ED-300	300	250	400	1.2mm	Small domestic water treatment control boxes
WE-ED-400	400	300	500	1.5mm	Residential/commercial small control boxes
WE-ED-500	500	350	600	1.5mm	Medium-sized commercial/industrial control boxes
WE-ED-600	600	400	800	1.8mm	Large industrial circulating water control boxes
WE-ED-800	800	500	1000	2.0mm	Large sewage treatment control boxes

Custom Dimension Services

We provide comprehensive customization services tailored to your specific requirements:

Control Box Matching: Custom dimensions to fit internal control box size and component layout
Installation Environment: Adjust size and thickness according to on-site space and environmental conditions
Special Requirements: Customize material, thickness, sealing level (IP54/IP65/IP67) and additional structures

Custom dimension range: Length 200-1500mm, Width 150-800mm, Height 300-1200mm, Shell Thickness 1.0-3.0mm. Provide specific requirements for customized design.

Application Scenarios

Widely used across various water treatment applications, compatible with different low-voltage water treatment control boxes:

Domestic Water Treatment: Residential, villa water purifier and RO water treatment control systems
Industrial Water Treatment: Industrial circulating water, boiler feed water and sewage treatment control
Commercial Water Treatment: Hotels, hospitals, schools and shopping malls central water supply control
Sewage Treatment: Small, medium and large sewage treatment station control systems
Agricultural Water Treatment: Farmland irrigation and greenhouse water supply control boxes
Special Environments: Customized for high humidity, high corrosion and high dust environments (chemical plants, coastal areas)
