Primary Secondary Tertiary Distribution Panel System Power Distribution Solution

Model Number:	LG156415645
MOQ:	10
Price:	USD28-68889
Delivery Time:	20 days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001/CE

Features:

Durable, Corrosion-resistant, Weatherproof

Ip Rating:

IP30 IP40 IP54 IP55 IP65 IP66

Application:

Industrial, Commercial, And Process Control

Material:

Mid Carbon Steel / Carbon Steel / Stainless Steel / Aluminum Steel

Color:

Silver Or Others

Customization:

Logo Printing, Size And Color Customization Available

Mounting Type:

Wall Mount, Pole Mount，free Standing

Usage:

Smart Building，Public Place Or Others

Certifications:

Size:

Various Sizes Available

Locking Mechanism:

Key Lock

Finish:

Powder Coated

Shape:

Rectangular

Packaging Details:

Wooden case Packaging

Highlight:

power distribution panel system

secondary distribution cabinet solution

tertiary power distribution panel

Product Description

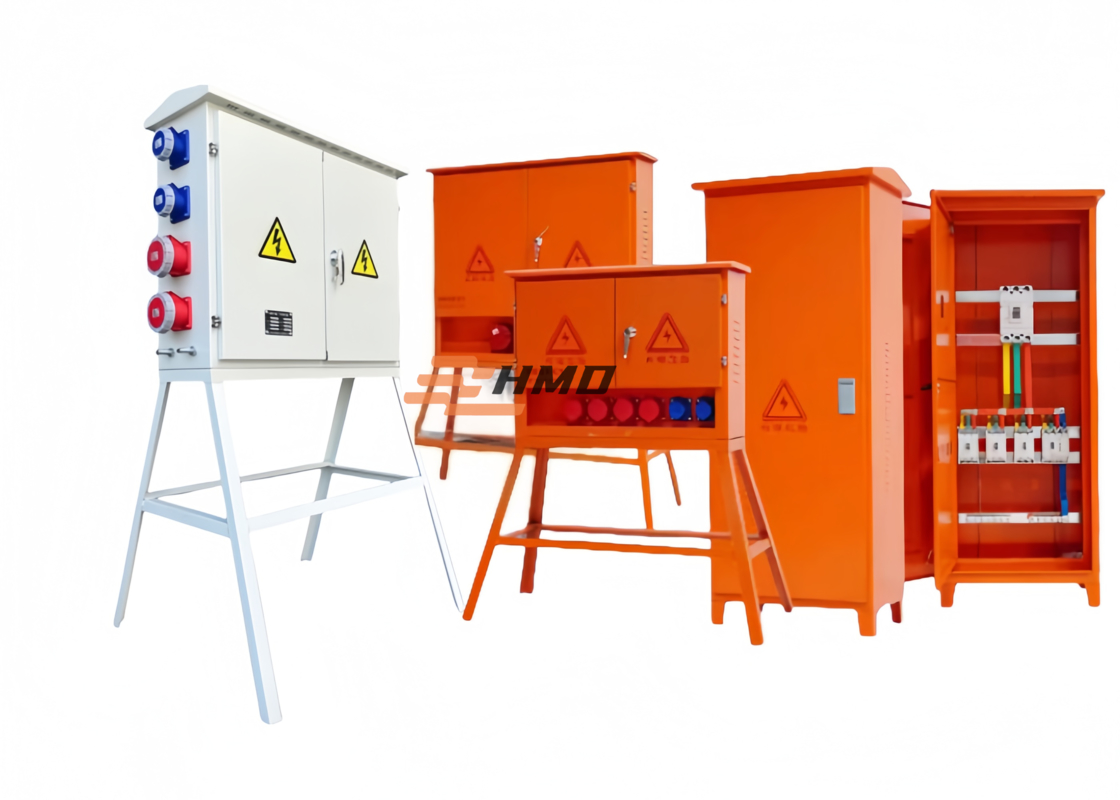

Primary Secondary Tertiary Distribution Panel System Power Distribution Solution

Product Overview

This robust power distribution solution is designed for industrial, commercial, and process control applications, offering reliable power management across primary, secondary, and tertiary distribution levels.

Key Specifications

Attribute	Value
IP Rating	IP30, IP40, IP54, IP55, IP65, IP66
Application	Industrial, commercial, and process control
Material	Mid Carbon Steel / Carbon Steel / Stainless Steel / Aluminum Steel
Color	Silver or custom options
Mounting Type	Wall mount, pole mount, free standing
Certifications	CE
Finish	Powder coated
Key Features	Durable, corrosion-resistant, weatherproof construction

System Components

Primary (MDB): Main power distribution from transformers for industrial plants and large buildings (400V+)
Secondary (SDB): Zone-wise power distribution for commercial floors and data center applications
Tertiary (FDB): Final circuits for lighting control and machine tool power distribution

Standard Dimensions & Materials

Size (H×W×D) mm	Enclosure/Door/Mounting Plate Thickness (mm)	Material Options
300×220×120	1.5/1.5/2.0	Cold-rolled steel / Stainless steel (SS304)
300×220×155	1.5/1.5/2.0	Cold-rolled steel / Stainless steel (SS304)
300×250×160	1.5/1.5/2.0	Cold-rolled steel / Stainless steel (SS304)
500×400×210	1.5/1.5/2.0	Cold-rolled steel / Stainless steel (SS304)
500×500×210	1.5/1.5/2.0	Cold-rolled steel / Stainless steel (SS304)
600×400×200	1.5/1.5/2.0	Cold-rolled steel / Stainless steel (SS304)
600×500×250	2.0/2.0/2.5	Cold-rolled steel / Stainless steel (SS304)
600×600×210	2.0/2.0/2.5	Cold-rolled steel / Stainless steel (SS304)
600×600×300	2.0/2.0/2.5	Cold-rolled steel / Stainless steel (SS304)
700×500×250	2.0/2.0/2.5	Cold-rolled steel / Stainless steel (SS304)

Configuration Recommendations

Smart Upgrades: Basic energy meters (Class 1.0) or advanced IoT gateway (4G/Modbus TCP) for load scheduling
Material Selection: Standard powder-coated steel (IP54) or SS304 + IP66 for harsh environments (additional 20% cost)

Customization options available including logo printing, size adjustments, and color variations to meet specific project requirements.
