| Model Number: | KL57879865788 |
| MOQ: | 20 |
| Price: | USD28-68889 |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T,Western Union |

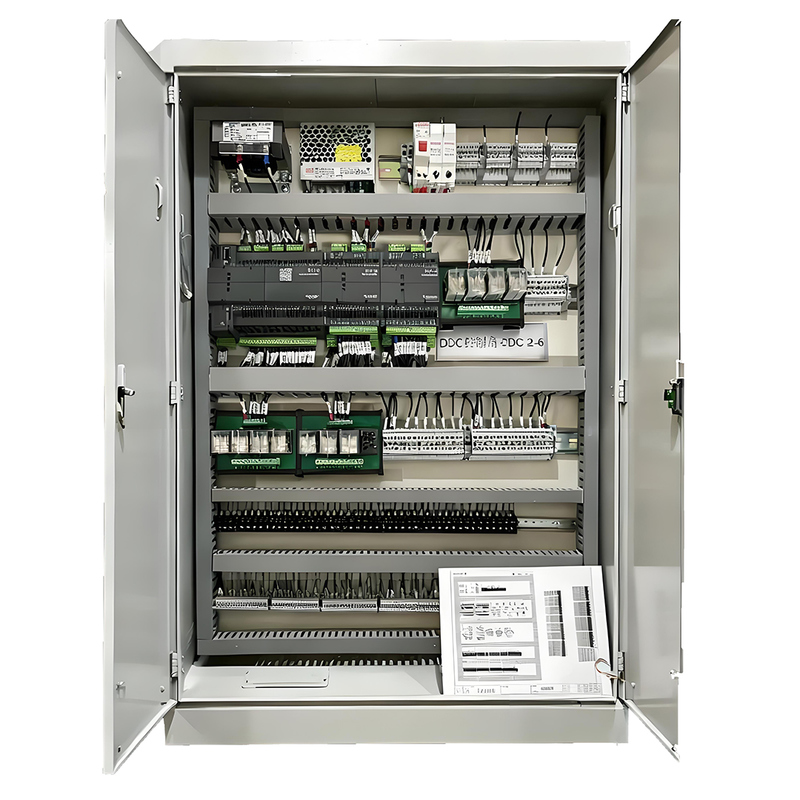

This electrical control cabinet provides power distribution and protection for commercial laundry equipment, gym ventilation systems, and facility electrical loads. Designed for both indoor and outdoor installation with customizable sizing and materials.
| Attribute | Value |
|---|---|
| Shape | Rectangular |
| Ventilation | Yes |
| Waterproof | Yes |
| Material | Metal |
| Installation | Wall mounted / Floor Standing |
| Corrosion Resistance | Yes |
| Lock Type | Key Lock |
| Fireproof | No |
| Color Options | Grey / Other Colors |
| Specification | Requirements |
|---|---|
| Electrical Performance | Adapts to local voltage (110V/220V single-phase, 380V/415V three-phase); 50/60Hz frequency; 30-200A rated current; 10-50kA short-circuit withstand; overload protection; ≤4Ω grounding resistance |
| Control Function | Circuit breakers/contactors for shunt switch control; optional intelligent remote monitoring with audible-visual fault alarms |
| Protection & Structure | IP54+ protection class; cold-rolled steel or 304 stainless steel enclosure; heat dissipation features; segregated strong/weak current layout |
| Environmental Adaptability | Operates in -10℃ to 50℃ temperatures; 10%-90% humidity (non-condensing); withstands laundry humidity and gym dust environments |
