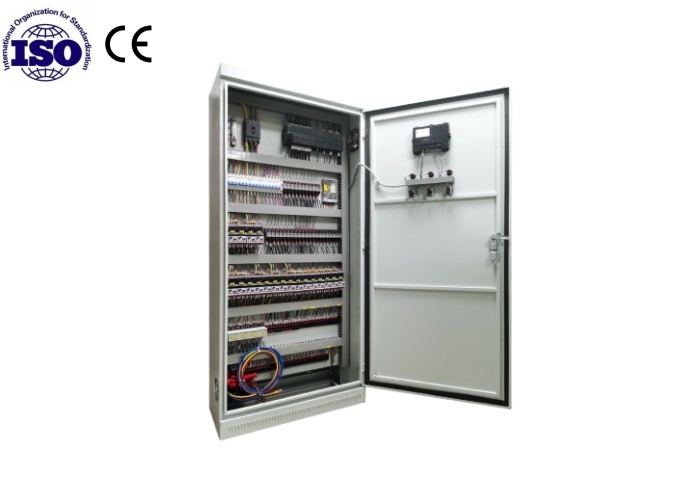

CNC Standing Elevator Temperature and Humidity PLC Control Cabinet

Model Number:	JL84165466
MOQ:	5
Price:	USD28-68889
Delivery Time:	15 days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001，CE

Features:

Durable, Waterproof, Fireproof

Usage:

Electrical Cabinet，PLC Control Panel

Thickness:

1.5mm Or More

Accessories:

Hinges, Handles, Screws

Type:

Cabinet

Material:

Metal

Structure:

Single Door/ 2 Doors

Shape:

Rectangular

Installation:

Wall Mounted，free Standing

Surface Treatment:

Powder Coating

Lock Type:

Key Lock

Size:

Customizable

Color:

Grey Or Others

Packaging Details:

wooden case packaging

Highlight:

CNC standing elevator control cabinet

PLC temperature humidity control cabinet

DDC cabinet with warranty

Product Description

CNC Standing Elevator Temperature and Humidity PLC Control Cabinet

Product Attributes

Attribute	Value
Usage	Electrical Cabinet, PLC control panel
Thickness	1.5mm or more
Accessories	Hinges, Handles, Screws
Type	Cabinet
Features	Durable, Waterproof, Fireproof
Material	Metal
Structure	Single Door/2 doors
Shape	Rectangular
Installation	Wall Mounted, free standing
Surface Treatment	Powder Coating
Lock Type	Key Lock
Size	Customizable
Color	Grey or others

Product Description

Operation Control

Receives and processes car/landing calls via PLCs or embedded controllers
Dynamically calculates optimal routes using destination dispatch algorithms
Regulates traction motor/VVVF drives for smooth acceleration/deceleration and floor-leveling (±5mm accuracy)

Safety Protection

Hardwired to safety chain (governors, door locks, overspeed switches)
Real-time monitoring for faults:
- Over-speed (≥115% rated speed)
- Door obstruction (mechanical + IR detection)
- Overload (load cell + current sensing)
Immediate safety shutdown via EN 81-20 compliant braking system

Condition Monitoring

Tracks operational parameters:
- Car position (absolute encoder feedback)
- Instantaneous speed (tachometer/PWM analysis)
- Load weight (strain gauge ±2% accuracy)
Provides predictive maintenance alerts through:
- HMI status codes (ISO 18738-1 standard)
- Remote monitoring interfaces (Modbus TCP/OPC UA)

System Coordination

Synchronizes door operator timing (open/close speed profiles)
Manages auxiliary systems:
- LED lighting (scheduled dimming)
- Ventilation fans (CO₂-based activation)
- Regenerative power recovery (when equipped)

Specifications

Type	Dimensions (Length × Width × Height, unit: mm)	Customization Notes
Standard control cabinet	1380×750×400	Can be customized according to customer requirements
Machine-room-less control cabinet	2000×550×300	Can be customized according to customer requirements
Integrated machine-room control cabinet	230×190×900, 230×190×1730, etc.	-
Integrated machine-room-less control cabinet	230×180×408, etc.	-
Home elevator control cabinet	530×240×854	-
Sightseeing elevator control cabinet	Ultra-thin design (200mm in thickness), compatible with 700×900 shafts	Integrated design, no additional machine room or pit required
Customized size	Determined according to actual needs	Can be adjusted based on elevator shaft size, installation location, functional requirements, etc., to meet the actual needs of different projects

Material

Aluminum alloy, stainless steel, carbon steel

Recommendations

Space fit: Match machine room dimensions with 30cm clearance; for machine-room-less setups, use slim designs (≤250mm thick)
Elevator specs: Size for capacity/speed, with separate strong/weak current zones
Environment: IP54+ enclosures with corrosion resistance for harsh areas; add cooling for high temps
Flexibility: Reserve upgrade ports; design detachable panels for easy maintenance
