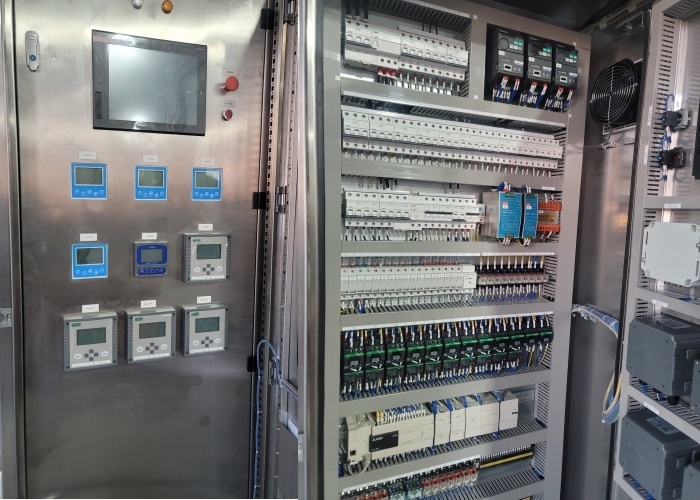

IP65 IP54 Aluminum Alloy PLC Control Cabinet Metal Waterproof Electrical Panel

Model Number:	Aluminum Alloy PLC Control BG1564156
MOQ:	5
Price:	USD28-68889
Delivery Time:	20 days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001/CE

Features:

Durable, Corrosion-resistant, Weatherproof

Ip Rating:

IP65 IP54

Application:

Industrial, Commercial, And Process Control

Material:

Aluminum Alloy

Color:

Silver Or Others

Customization:

Logo Printing, Size And Color Customization Available

Mounting Type:

Wall Mount, Pole Mount，free Standing

Usage:

PLC Control

Certifications:

Size:

Various Sizes Available

Locking Mechanism:

Key Lock

Finish:

Powder Coated

Shape:

Rectangular

Packaging Details:

Wooden case Packaging

Highlight:

aluminum alloy PLC control cabinet

IP65 Metal Waterproof Electrical Panel

IP54 Alloy PLC Control Cabinet

Product Description

Aluminum Alloy PLC Control Cabinet Metal Process Control Panel

Product Specifications

Attribute	Value
IP Rating	IP65 IP54
Application	Industrial, commercial, and Process control
Material	Aluminum Alloy
Color	Silver or Others
Customization	Logo printing, size and color customization available
Mounting Type	Wall mount, pole mount, free standing
Usage	PLC control
Certifications	CE
Size	Various sizes available
Locking Mechanism	Key lock
Finish	Powder coated
Shape	Rectangular
Features	Durable, corrosion-resistant, weatherproof

Industrial Applications

Petrochemical Industry: Controls pumps, valves, fans in oil extraction, refining, and chemical production. Suitable for Zone 1 and Zone 2 explosive gas environments.
Metallurgy and Aluminum Processing: Manages production lines including aluminum extruders and metal smelting, controlling temperature, pressure, and speed parameters.
Pharmaceutical and Food Industries: Ideal for explosion-proof, dust-proof, and corrosion-resistant environments in manufacturing and processing applications.
Wastewater Treatment: Automated control for pump stations, floodgates, and treatment plants with remote monitoring capabilities.
Textile and Brewing Industries: Controls equipment in flammable dust or vapor environments to ensure production safety.
Offshore Platforms: Designed for highly corrosive marine environments, managing lighting, ventilation, and fire protection systems.
Automated Production Lines: Integrates PLCs, frequency converters, and touchscreens for precise control in automotive and packaging applications.

Standard Dimensions

Model/Type	Width (mm)	Height (mm)	Depth (mm)	Notes
Full Aluminum Control Box-B	≤400 (customizable)	≤400 (customizable)	190	Panel included, customizable size
400×500 Cast Aluminum PLC Explosion-Proof Cabinet	400	500	-	For hazardous areas
Explosion-Proof Control Box	400	400	175	IP65
Explosion-Proof Control Box	420	300	150	IP65
PLC Power Module Explosion-Proof Cabinet	1000	2100	600	Steel/aluminum construction
Power Control Cabinet	600-800	1200-1800	370	Cold-rolled steel & aluminum
Commander 1F Series (Aluminum Enclosure)	160-400	230-360	108-242	Modular, IP65, customizable

Customization Guide

Dimensional Customization: Allow 10-15% larger than equipment size. Recommended 50mm modular units for accessory compatibility.
Material Selection: 6061 Aluminum for standard use, 5052 for high-humidity, or Steel-Aluminum composite for heavy-duty applications.
Protection Rating: IP54 for workshops, IP65 with additional sealing for outdoor/dusty environments.
Cooling Solutions: Natural cooling for <500W, forced air for 500-1500W, heat pipe cooling for high-power applications.
Special Requirements: Seismic designs for marine/vehicle use, EMC shielding with zinc-plated steel lining.
