Commercial Building Lighting Control Panel | Intelligent Energy Management System

Brand Name:	HMD Electric
Model Number:	5641564564654
MOQ:	5
Delivery Time:	20 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Locking Mechanism:

Key Lock

Voltage Rating:

0-400V

Outputtypes:

Analog And Digital Outputs

Application:

Building Automation

Controltype:

Digital

Certifications:

Locktype:

Key Lock

Output Voltage:

0-10V

Ip Rate:

IP54 / IP65

Color:

Grey/Others

Display:

LCD Touch Screen

Ip Rating:

IP54 IP55 IP65 IP66

Protectionrating:

IP20 Or Higher

Fireproof:

Communicationprotocol:

BACnet / Modbus

Packaging Details:

Wooden Case

Highlight:

commercial lighting control panel

intelligent energy management system

direct digital control cabinet

Product Description

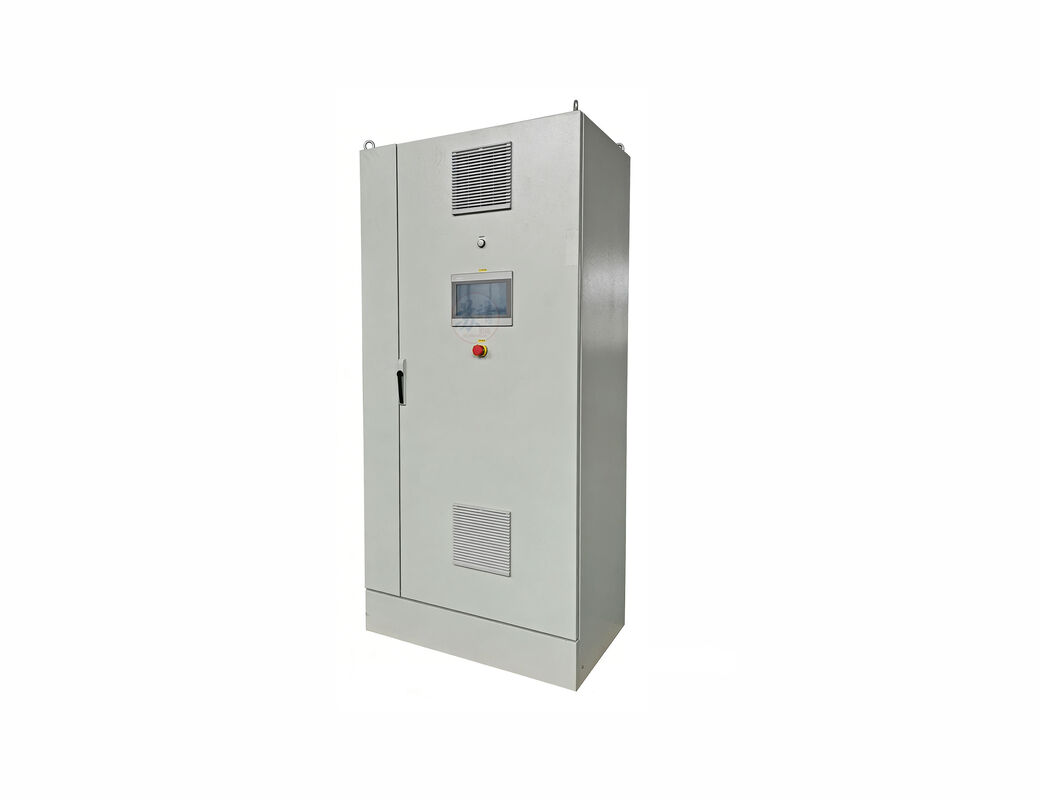

Commercial Building Lighting Control Panel

Intelligent Energy Management System for office complexes, shopping centers, and institutional facilities

Product Overview

This sophisticated lighting control panel delivers advanced energy management through integrated occupancy sensors, daylight harvesting, and time-based scheduling capabilities.

Technical Specifications

Parameter	Details
Control Protocol	BACnet/IP, Modbus TCP, DALI-2 (optional)
Number of Zones	8 - 32 lighting zones
Load per Zone	Up to 20A
Communication	Ethernet, RS485
Voltage	AC 220V / 380V
Protection Level	IP54 (indoor)
Dimensions	800mm × 600mm × 200mm
Display	4.3" color touchscreen
Certification	CE, BTL certified BACnet

Core Features

Zone Control: Independent control of multiple lighting zones
Scene Setting: Pre-configured lighting scenes for different scenarios
Occupancy Integration: Automatically turns off lights in unoccupied spaces
Daylight Harvesting: Adjusts artificial lighting based on available natural light
Energy Reporting: kWh consumption per zone with detailed reporting

Application Scenarios

Office Buildings: Open plan areas, conference rooms, private offices
Shopping Malls: Tenant spaces, corridors, common areas, food courts
Hotels: Lobbies, corridors, function rooms, banquet halls
