High Quality Stainless Steel/Cold-Rolled Steel Water Treatment Control Enclosure

Brand Name:	HMD
Model Number:	41564156415
MOQ:	5
Delivery Time:	15 days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Features:

Durable, Waterproof, Fireproof

Protectionlevel:

IP54 / IP65 / IP66

Thickness:

1.5mm Or More

Protection Level:

IP65 IP55 IP40 IP30

Number Of Shelves:

Adjustable

Application:

Industrial Control, Power Distribution, Automation

Internalmounting:

DIN Rails / Mounting Plates

Size:

Customizable

Number Of Doors:

1 Or 2

Dimensions:

Customizable (Height X Width X Depth In Mm)

Productname:

Custom Electrical Cabinet

Finish:

Powder Coating / Painted / Galvanized

Ip Rating:

IP54 IP55 IP30 IP40 IP66 IP65

Capatity:

4U - 42U

Packaging Details:

Carton

Highlight:

stainless steel water treatment enclosure

cold-rolled steel electrical cabinet

custom water treatment control box

Product Description

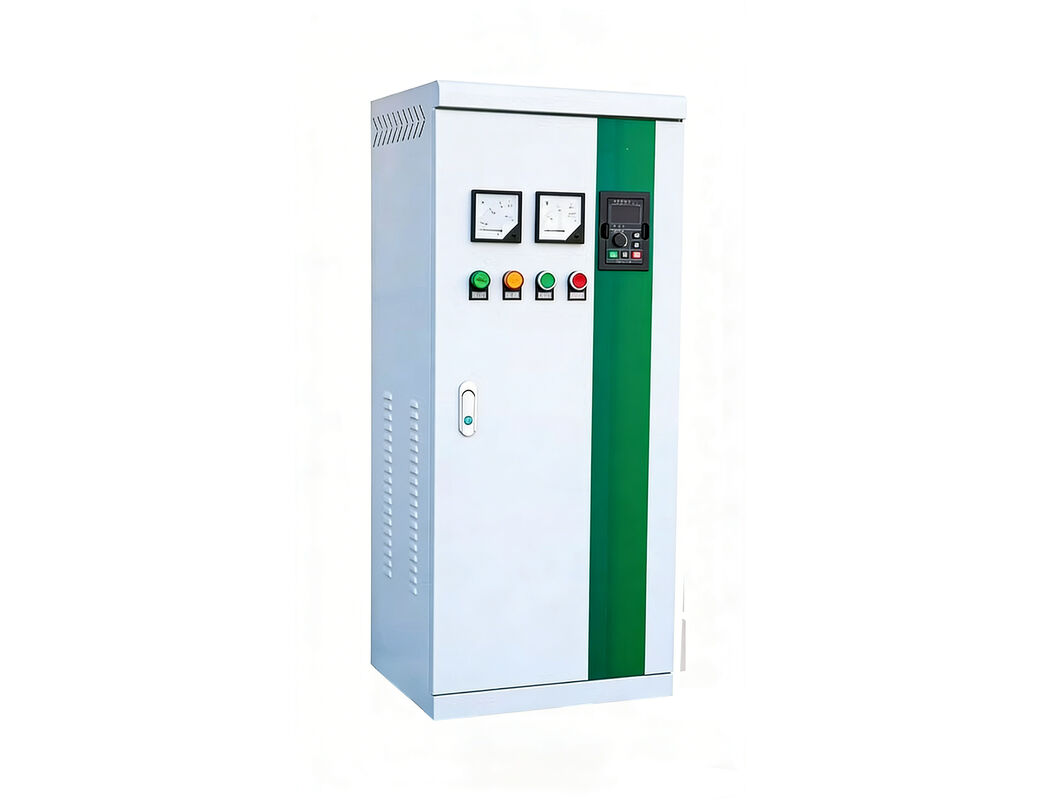

High Quality Stainless Steel/Cold-Rolled Steel Water Treatment Control Enclosure

This professional water treatment control enclosure provides superior protection for electrical components in water treatment systems. Available in two durable material options: 304/316 stainless steel and cold-rolled steel (SPCC), designed to safeguard critical equipment including contactors, circuit breakers, and PLC systems from environmental damage.

Material Specifications & Protection

Stainless Steel Version

304/316 stainless steel construction with 316L corrosion resistance grade
Excellent anti-corrosion, anti-rust, and anti-oxidation performance
Ideal for harsh environments: high humidity, corrosive gas, and coastal areas
Base thickness: 1.0mm with adjustable finished shell thickness

Cold-Rolled Steel Version

80μm electrophoretic coating + 60μm powder coating treatment
Reliable anti-rust and dust-proof protection
Cost-effective solution for general water treatment applications
Base thickness: 1.0mm with adjustable finished shell thickness

Design Features & Protection Standards

Sealed structure with rubber sealing strips prevents water vapor and dust ingress
Lockable removable door with waterproof stainless steel lock
Internal standard 35mm DIN mounting rails for easy installation
IP54 rated: dust-proof and splash-proof protection for indoor use
IP65 rated: complete dust-proof and jet-water proof for outdoor/harsh environments
Perfect compatibility with WE-ED series control boxes

Standard Dimensions

Available in standard sizes specifically designed for WE-ED series water treatment control boxes. Shell thickness ranges from 1.2mm to 2.0mm, adjustable based on material and load-bearing requirements.

Model	Length (L) mm	Width (W) mm	Height (H) mm	Shell Thickness
WE-ED-250	250	200	350	1.2mm
WE-ED-300	300	250	400	1.2mm
WE-ED-400	400	300	500	1.5mm
WE-ED-500	500	350	600	1.5mm
WE-ED-600	600	400	800	1.8mm
WE-ED-800	800	500	1000	2.0mm

Custom Dimension Services

We offer fully customizable dimension services to meet specific installation requirements and control box configurations.

Customization Options

Dimension Matching: Customize length, width, and height based on internal control box size and component layout
Thickness Adjustment: Shell thickness customization from 1.0mm to 3.0mm based on load-bearing and protection needs
Special Adaptations: Adjustments for wall-mounted, floor-standing, or embedded installation and environmental conditions

Custom Dimension Range

Length: 200-1500mm | Width: 150-800mm | Height: 300-1200mm
Contact us with your specific requirements for personalized design solutions.
