| Brand Name: | HMD |
| Model Number: | 4512556422 |
| MOQ: | 5 |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Item | Standard Specification |
|---|---|

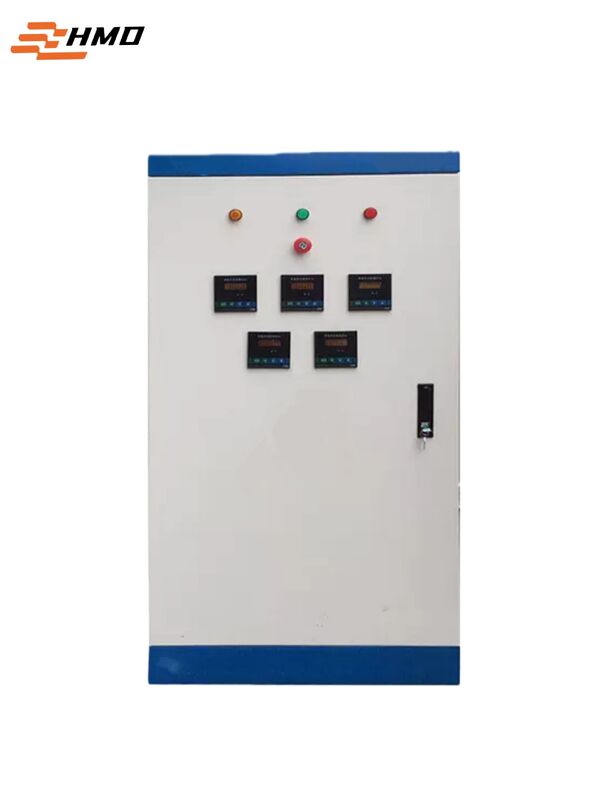

| Cabinet Type | Compact visual PLC control cabinet |
| Cabinet Material | Cold-rolled steel (1.2-1.5mm); 304 stainless steel (optional) |
| Surface Treatment | Electrostatic powder spraying (RAL7035 light gray, matte anti-fingerprint) |
| Installation Method | Wall-mounted / small floor-standing |
| Protection Grade | IP40 (standard indoor); IP54 (optional for humid areas) |
| Overall Size | 500×400×200mm (wall-mounted); 600×500×250mm (small floor-standing) |
| Certifications | CE, RoHS, IEC 60529 (IP rating) |
| Item | Standard Specification |
|---|---|
| Visual Interface (HMI) | 7-inch TFT-LCD color touch screen; 800×480 resolution; capacitive touch |
| PLC Compatibility | Siemens, Schneider, Mitsubishi, Delta, Weinview |
| Rated Voltage | AC 220V 1P (EU/Asia); AC 110V 1P (US, optional) |
| Rated Current | 16A/25A (matching small commercial HVAC, pump, lighting load) |
| Control Circuits | 4-8 circuits (for HVAC, 1-2 pumps, lighting division control) |
| Communication Interfaces | RS485, Ethernet (optional WiFi for remote monitoring) |
| Working Temperature | 0℃ ~ +45℃ (adapt to small commercial indoor environment) |
| Humidity Adaptability | 10% ~ 85% RH (non-condensing) |
