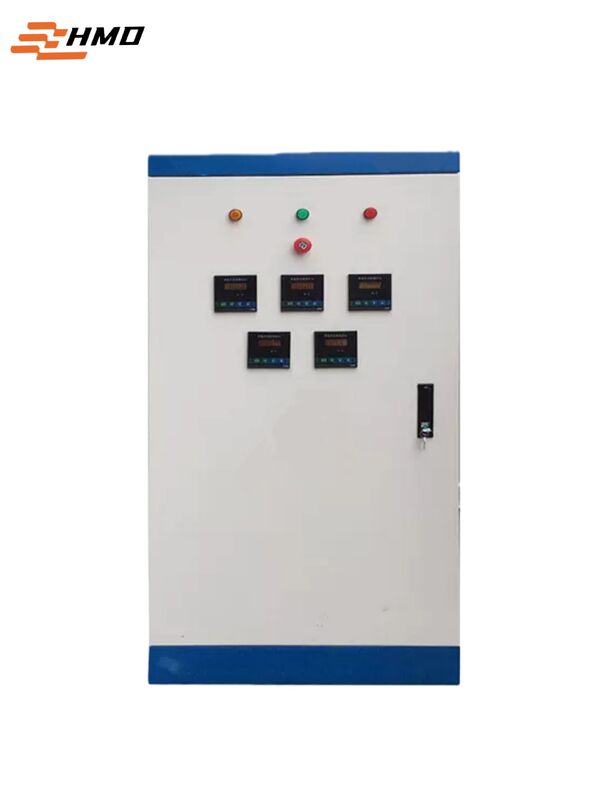

Smart Energy Meter Cabinet - Integrated Precision Power Metering Distribution Cabinet

Brand Name:	HMD
Model Number:	156548651256
MOQ:	5
Delivery Time:	20 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Wooden Case

Highlight:

Smart energy metering distribution cabinet

Precision power metering metal cabinet

Integrated electrical cabinet with warranty

Product Description

Smart Energy Meter Cabinet - Integrated Precision Power Metering Distribution Cabinet

Our integrated Smart Energy Meter Cabinet is a professional power measurement and distribution solution engineered for industrial, commercial, and municipal power management scenarios. Equipped with high-precision metering modules and intelligent communication technology, it enables real-time power data monitoring, accurate energy consumption statistics, and remote data transmission.

The cabinet body is crafted from high-quality cold-rolled steel sheet with one-time molding and electrostatic spraying processes, boasting excellent corrosion resistance, impact resistance, dustproof and waterproof performance that meets stringent international power industry standards. It integrates metering, distribution, protection, and intelligent control into a single unit with compact internal layout and standardized wiring.

Key Features

High-precision metering with real-time power data monitoring
Built-in overvoltage, overcurrent, short-circuit and leakage protection
Multiple communication protocols (RS485, LoRa, NB-IoT)
Excellent corrosion resistance and environmental protection
Easy installation and maintenance with standardized wiring
Flexible customization for various power demands and environments
Compliant with international electrical standards and certifications

Technical Specifications

Parameter Item	Standard Specification	Remarks
Rated Voltage	AC 220V/380V (1P/3P)	Customizable for 400V/415V (EU/UK standard)
Rated Current	63A/100A/250A/400A/630A	Customizable for higher current specifications
Metering Accuracy	Class 1.0 / Class 0.5S	Complies with IEC 62053 international metering standard
Protection Grade	IP54/IP65	IP65 for outdoor and high-dust scenarios
Communication Protocol	RS485, LoRa, NB-IoT	Customizable for Modbus/DL/T645
Cabinet Material	Cold-rolled steel plate (1.2-2.0mm)	Customizable for 304/316 stainless steel
Surface Treatment	Electrostatic powder spraying	Corrosion and UV resistant, suitable for outdoor use
Working Temperature	-20℃ ~ +60℃	Wide temperature adaptability for different climatic regions
Certification	CE, RoHS	Customizable for UL/CSA (US standard) as required

Core Application Scenarios

Commercial Buildings

Ideal for office buildings, shopping malls, star hotels, high-rise residential buildings and commercial complexes. Supports separate metering of public area power and tenant power, real-time remote collection of energy consumption data, and automatic data statistics.

Industrial Factories & Industrial Parks

Suitable for manufacturing plants, processing workshops, industrial parks and logistics parks. Adapts to high-power industrial power metering and multi-circuit separate measurement needs, helping enterprises analyze energy consumption efficiency and reduce industrial energy costs.

Municipal & Public Facilities

Applicable to municipal engineering, schools, hospitals, stadiums, public parking lots and urban public lighting systems. Meets standardized power metering and safety management requirements of public facilities, improving municipal power operation efficiency.

Logistics & Industrial Warehouses

Fit for large logistics centers, bonded warehouses, cold chain storage and industrial warehouses. Supports multi-zone power metering and 24/7 stable operation with high protection grade to adapt to harsh warehouse environments.

Retail & Chain Stores

Suitable for chain supermarkets, brand retail stores, convenience stores and catering chains. Enables separate metering of single store power consumption and unified data management across chain stores for standardized power management.
