| Brand Name: | HMD |
| Model Number: | 665841 |
| MOQ: | 1 |
| Delivery Time: | 7 days |
| Payment Terms: | T/T,Western Union |
| Parameter Name | Standard Specification & Customization Range | Remarks |
|---|---|---|

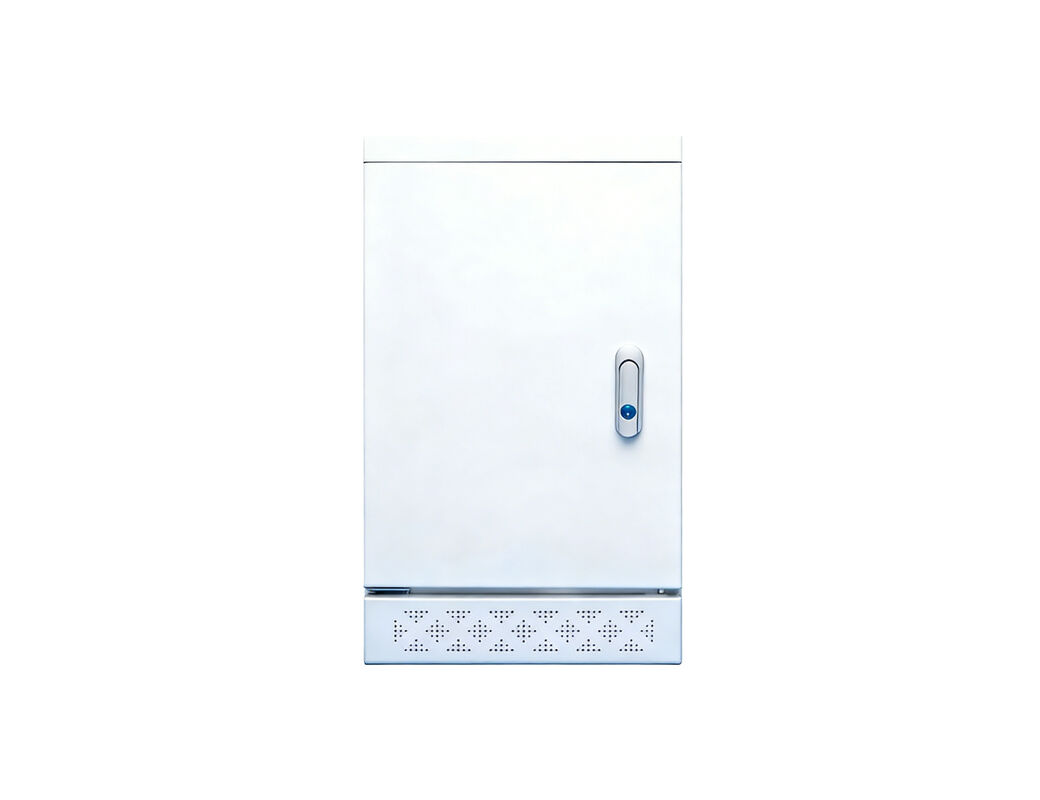

| Box Size (Customizable) | Standard: 400×500×1600mm; Customizable: 200×300×400mm~800×1000×2000mm (W×D×H) | Customized according to outdoor installation space, electrical component size and layout |
| Box Material (Core Parameter) | 304 stainless steel (1.5~2.0mm)/cold-rolled steel; Surface treatment: Anti-corrosion electrostatic spraying | Anti-corrosion, anti-rust, anti-aging, matches IP65 waterproof performance, adapts to outdoor harsh environment |
| Waterproof & Dustproof Level (Core Parameter) | Standard: IP65; Optional IP66 for extreme outdoor rain/dust environments | IP65: Complete dustproof, protection against low-pressure water jets from any direction, no water intrusion |
| Rated Current | Standard: 16A~63A; Customizable up to 100A for high-power outdoor electrical equipment | Matches total load of outdoor electrical components and auxiliary equipment, safe and stable |
| Voltage Grade | AC 220V/380V (power supply); DC 24V (for control circuit, optional) | Complies with outdoor electrical safety standards, stable power supply for outdoor electrical systems |
| Weather Adaptability | Temperature resistance: -30℃~70℃; Anti-ultraviolet, anti-humidity, anti-freezing | Adapts to different outdoor climates, no performance degradation in high/low temperature or humid environments |
| Installation Method | Wall-mounted/Floor-mounted/Pole-mounted; All with waterproof mounting brackets | Stable installation, anti-wind, anti-shake, ensures IP65 waterproof performance is not affected |
| Internal Configuration (Customizable) | Mounting plate, terminal block, cable trough, grounding bar, waterproof gasket, cable gland | Full waterproof design, standardized wiring, convenient for maintenance and ensures internal component safety |
