Outdoor Fresh Air & Exhaust Ventilation Control Cabinet Schneider PLC Box

Model Number: KL57879865790
MOQ: 20
Price: USD28-68889
Delivery Time: 20 Days
Payment Terms: T/T,Western Union
Detail Information
Place of Origin:
China
Certification:
Ce
Shape:
Rectangular
Ventilation:
Yes
Size:
Customizable
Waterproof:
Yes
Weight:
Customizable
Usage:
Indoor/Building/Mall
Corrosion Resistance:
Yes
Material:
Metal
Installation:
Wall Mounted / Floor Standing
Lock Type:
Key Lock
Number Of Doors:
1 Or 2
Fireproof:
No
Color:
Grey / Others
Packaging Details:
Carton/Wooden Carte
Highlight:

Schneider PLC control cabinet outdoor

,

ventilation control cabinet with exhaust

,

PLC control box for fresh air

Product Description

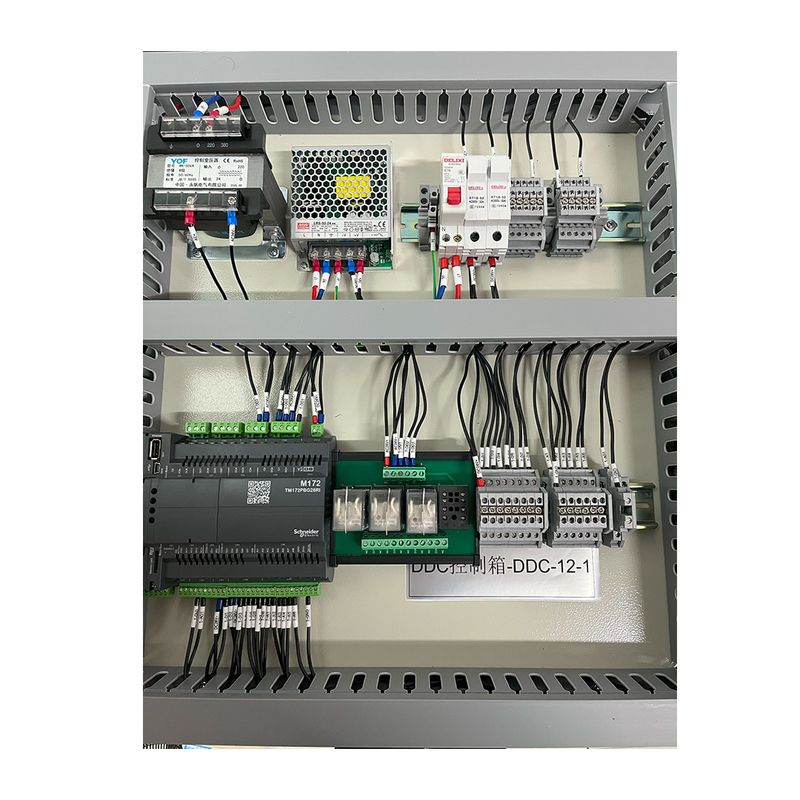

Outdoor Fresh Air & Exhaust Ventilation Control Cabinet Schneider PLC Box
This outdoor-rated ventilation control cabinet features a Schneider PLC for precise management of fresh air intake and exhaust systems. Designed for durability and adaptability, it's suitable for various industrial and commercial applications.
Product Attributes
Attribute Value
Shape Rectangular
Ventilation Yes
Size Customizable
Waterproof Yes
Weight Customizable
Usage Indoor / Outdoor
Corrosion Resistance Yes
Material Metal
Installation Wall mounted / Floor Standing/Pole mounted
Lock Type Key Lock
Number Of Doors 1 or 2
Fireproof No
Color Grey / Others
Applications
Application Scenarios Usage Details & Functions
Commercial Buildings Applied in large-scale shopping malls, office buildings, and hotels. Ensures continuous fresh air supply and efficient stale air exhaust; controls exhaust fan operation to maintain comfortable indoor air quality, especially for high-traffic and high-pollution areas (e.g., kitchens, restrooms, smoking areas).
Industrial Facilities Used in factories (especially those for chemical production, food processing, or high-dust/high-fume manufacturing). Automatically adjusts exhaust fan speed based on pollution levels; its protection function safeguards electrical components from industrial hazards like over-current, short-circuit, and mechanical damage.
Residential Buildings Suitable for high-rise residential buildings. Manages fresh air intake and exhaust in individual apartments or common areas; ensures residents access fresh air while protecting electrical equipment from residential-level electrical failures and environmental influences.
Educational Institutions Applied in schools and universities. Meets large-scale ventilation needs to maintain a healthy learning environment; installed in classrooms, libraries, and gymnasiums to manage fresh air exhaust fans, ensuring proper air circulation and protecting the electrical system from overloads during peak usage times.
Technical Specifications
Rated voltage: Common single-phase voltages are 110V and 220V; The three-phase voltage is 380V, 415V, etc., depending on the usage scenario and connection to the power grid.
Rated current: Small control cabinets may range from 10-30A, while large industrial ones may reach 100A or higher, depending on the total power of the controlled exhaust fans and ancillary equipment.
Frequency: Generally 50Hz or 60Hz, consistent with the local power system frequency.
Short circuit withstand current: Between 10-50kA, determining the product's ability to withstand current surges during short circuit faults, protecting internal components and circuit safety.
Material Options
  • Cold rolled steel
  • 304 or 316 Stainless Steel
IP Rating
  • IP55
  • IP65
