Outdoor Solar System Combiner box PV Grid-Connected Control Cabinet

Model Number:	JL1561541562
MOQ:	10
Price:	USD28-68889
Delivery Time:	20 Days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Usage:

Outdoor

Weight:

Varies Based On Size

Ventilation:

Yes

Mounting Type:

Floor Standing

Fireproof:

Waterproof:

Yes

Shape:

Rectangular

Number Of Shelves:

Adjustable

Number Of Doors:

Single/Double

Size:

Customizable

Material:

Metal

Lock Type:

Key Lock

Color:

Grey/Others

Packaging Details:

Wooden case/ Carton

Highlight:

solar combiner box outdoor

PV grid-connected control cabinet

photovoltaic cabinet with warranty

Product Description

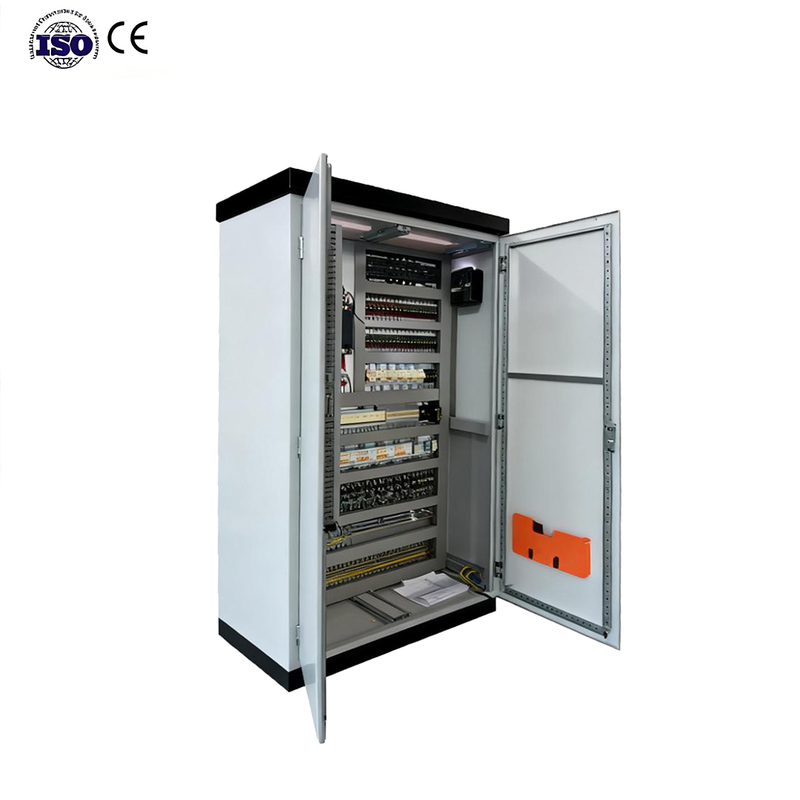

Outdoor Solar System Combiner Box PV Grid-Connected Control Cabinet

This outdoor solar combiner box is designed for efficient power distribution in photovoltaic systems, providing safe grid connection and weatherproof protection.

Key Features

Combines multiple PV string inputs for grid connection in solar power plants
Ideal for commercial, industrial, and residential rooftop solar installations
Provides safe power distribution and system monitoring capabilities
Weatherproof construction for reliable outdoor operation

Technical Specifications

Attribute	Details
Usage	Outdoor
Material	Metal
Mounting Type	Floor Standing
Certifications	CE
Lock Type	Key lock
Customization	Available upon request

Standard Dimensions

Type	Dimensions (H × W × D, mm)
Floor-standing	1400 × 600 × 500 to 2200 × 800 × 800
Custom	Available upon request

IP Rating Specifications

IP Rating
IP54
IP55
IP65/66

Configuration Guidelines

Select rated voltage and current to match your solar system capacity
Choose appropriate IP rating for outdoor waterproof and dustproof performance
Material and coating should provide anti-corrosion and UV resistance
Include necessary circuit protection devices (fuses, breakers, surge protection)
Optional monitoring functions with smart meters or communication modules
