| Brand Name: | HMD |
| Model Number: | 526413 |
| MOQ: | 1 |
| Delivery Time: | 10 days |
| Payment Terms: | Western Union,T/T |
| Parameter Name | Standard Specification & Customization Range | Remarks |
|---|---|---|

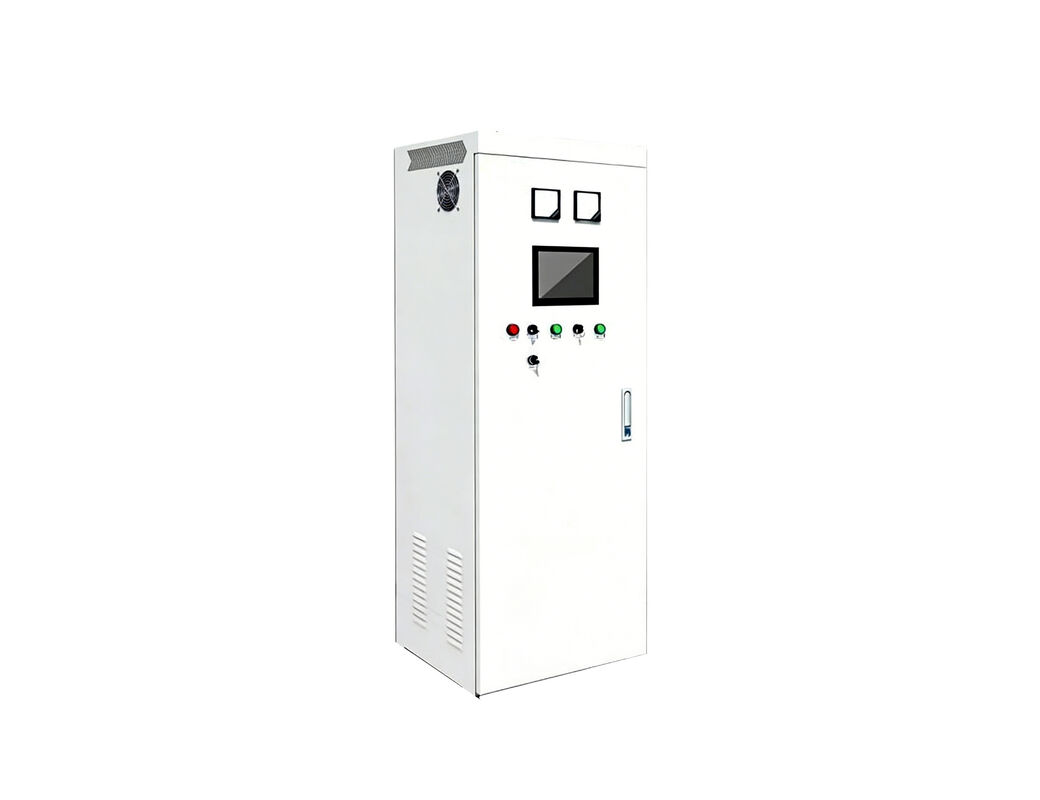

| Enclosure Size (Customizable) | Standard: 500×600×1800mm; Customizable: 300×400×500mm~1000×1200×2200mm (W×D×H) | Customized according to harsh industrial site space, equipment size and layout requirements |
| Enclosure Material (Core Parameter) | 304/316 stainless steel (2.0~3.0mm); Optional galvanized steel/anti-corrosion alloy steel | High strength, anti-corrosion, anti-rust, anti-aging, suitable for long-term use in harsh industrial environments |
| Voltage Grade | AC 220V/380V (power supply); DC 24V (for control circuit, optional) | Complies with industrial electrical standards, stable power supply for internal equipment and components |
| Rated Current | Standard: 16A~100A; Customizable up to 250A for large-scale industrial equipment | Matches total load of harsh environment industrial equipment and auxiliary systems |
| Harsh Environment Adaptability | Temperature resistance: -40℃~80℃; Anti-corrosion: Acid-base resistant; Vibration resistance: 10~500Hz | Adapts to high temperature, low temperature, corrosive, high-vibration harsh industrial conditions |
| Protection Level | Standard: IP65; Optional IP66/IP67 for extreme harsh environment (heavy dust/heavy rain) | High-level dust-proof, waterproof, anti-splash, fully isolates harsh environment pollutants |
| Installation Method | Floor-mounted (reinforced anti-vibration base); Optional wall-mounted/pole-mounted (on-site points) | Stable installation, anti-shake, anti-wind, adapts to harsh industrial site installation conditions |
| Internal Configuration (Customizable) | Reinforced mounting plate, cable trough, grounding bar, anti-vibration pad, anti-corrosion gasket | Reinforced structure, anti-vibration and anti-corrosion design, ensures stable operation of internal components |
