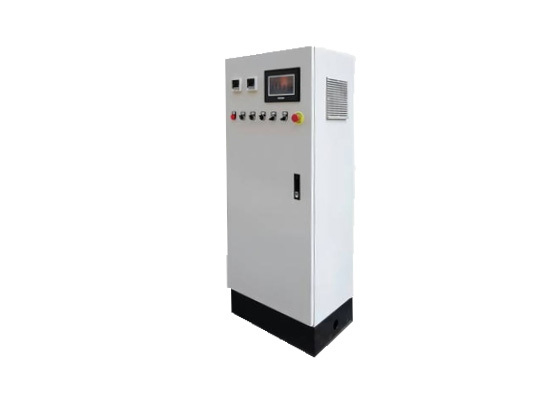

OEM Waterproof Industrial Pump ABB VFD Control Cabinet Floor Standing

OEM Waterproof Industrial Pump ABB VFD Control Cabinet Floor Standing

Model Number:	JL1561541569
MOQ:	10
Price:	USD28-68889
Delivery Time:	25 Days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, 3C, CE

Usage:

Electrical Equipment Storage/ Industrial/ VFD Control Cabinet

Weight:

Varies Based On Size

Ventilation:

Yes

Mounting Type:

Wall-mounted，Floor Standing，Pole Mount

Fireproof:

Waterproof:

Yes

Certifications:

Shape:

Rectangular

Number Of Shelves:

Adjustable

Number Of Doors:

Single/Double

Size:

Customizable

Material:

Metal

Lock Type:

Key Lock

Color:

Grey/Others

Packaging Details:

Wooden case

Highlight:

OEM waterproof industrial pump cabinet

Industrial Pump VFD control cabinet

custom waterproof electrical control cabinet

Product Description

OEM Waterproof Industrial Pump ABB VFD Control Cabinet

Product Attributes

Attribute	Value
Usage	Electrical equipment storage/ Industrial/ VFD Control Cabinet
Weight	Varies based on size
Ventilation	Yes
Mounting Type	Wall-mounted, Floor Standing, Pole Mount
Fireproof	No
Waterproof	Yes
Certifications	CE
Shape	Rectangular
Number Of Shelves	Adjustable
Number Of Doors	Single/Double
Size	Customizable
Material	Metal
Lock Type	Key lock
Color	Grey/Others

Product Description

The OEM Waterproof Industrial Pump ABB VFD Control Cabinet is designed for robust industrial applications with waterproof capabilities and ABB VFD control technology.

Applications

Water and Wastewater Treatment: Stabilizes municipal water supply by adjusting pump speed via ABB VFD, reducing energy consumption during low-demand periods and increasing during peak hours. Handles variable sewage volumes in humid/corrosive environments.
Industrial Manufacturing: Controls water pumps in food and beverage processing with precise speed regulation. Manages pumps transferring corrosive/hazardous liquids in chemical industries with waterproof, robust construction.
Construction and Infrastructure: Powers water pumps for concrete mixing, dust suppression, and equipment cooling on construction sites. Controls agricultural/landscape pumps with adaptive speed adjustment based on environmental conditions.

Design Specifications

Type	Common Dimensions (H × W × D, mm)
Wall-mounted	330 × 550 × 466 (6U) 612 × 600 × 300 (12U) 600 × 600 × 462 (12U) 914 × 620 × 762 (19U)
Floor-standing	1400 × 600 × 500 1800 × 800 × 600 2000 × 1000 × 600 2200 × 800 × 800 1800 × 1200 × 400 2000 × 1600 × 500
Special Sizes	508 × 508 × 254 (20in×20in×10in) 762 × 762 × 254 (30in×30in×10in)
Custom	Custom on requirement

IP Rating Specifications

IP Rating	Protection Capability	Application Scenarios	Special Requirements
IP20	Protects against ≥12.5mm solids/No water protection	Dry indoor environments (electrical rooms, server rooms)	Standard steel plate, no special sealing required
IP54	Dustproof + Splash-proof	Industrial workshops (light dust/humidity)	Door gaps require sealing strips
IP55	Dustproof + Low-pressure water jet protection	Outdoor uncovered areas	Full weld seams required, surface powder coating
IP65	Complete dustproof + High-pressure water jet protection	Harsh environments (ports, mines, etc.)	Double sealing structure + Drainage design
IP66	Complete dustproof + Powerful water jet protection	Ship decks, petrochemical plants	304 stainless steel hinges + Pressure relief valve
IP67	Complete dustproof + Temporary immersion protection (1m/30min)	Underground projects, flood control facilities	Fully welded enclosure + Waterproof cable glands

Configuration Suggestions

Functional Needs: Prioritize heat dissipation for high-power equipment; enhance IP rating for outdoor use (dust/water resistance).
Dimensions: Size per installation space and components—compact wall-mounted for narrow areas, larger floor-standing for more elements (reserve expansion space).
Structure: Cabinet doors open ≥90° for easy maintenance; add lifting holes/handles for handling; design for side-by-side installation if needed.
Materials: Mild steel (1.0-2.5mm thick, thicker for heavy components/high vibration); galvanize for corrosion resistance.
Surface Treatment: Epoxy powder coating (80-100μm, 180-210°C baked) with non-glare textures (smooth/fine patterns).
EMC: Use grounding, shielding, filtering; conductive gaskets at seams, shorter screw spacing, shielding nets for vents/observation holes.
Internal Layout: Separate high-voltage (contactors, relays) and low-voltage (sensors, controllers) components; ensure safe wiring/maintenance distances.
Accessories: Choose secure locks, hinges, and gaskets (improves dust/moisture protection); suitable handles.
