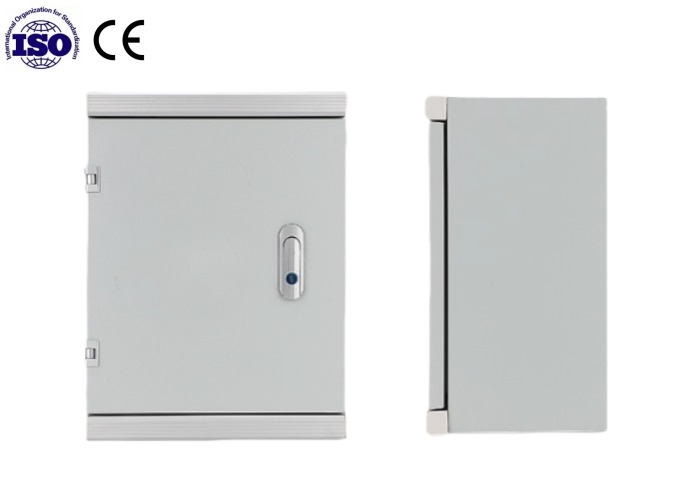

Steel Automated Pump Control Panel For Building Management Systems BMS

Model Number:	PK1561511542
MOQ:	10
Price:	USD28-68889
Delivery Time:	20 days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001/CE

Features:

Durable, Corrosion-resistant, Weatherproof，dust Proof

Ip Rating:

IP54 IP55 IP65 IP66

Application:

Industrial, Commercial, And Process Control

Material:

Mid Carbon Steel / Carbon Steel / Stainless Steel / Aluminum Steel

Color:

Silver Or Others

Customization:

Logo Printing, Size And Color Customization Available

Mounting Type:

Wall Mount, Pole Mount，free Standing

Usage:

PLC Control/ Gate Pump Control Panel

Certifications:

Size:

Various Sizes Available

Locking Mechanism:

Key Lock

Finish:

Powder Coated

Shape:

Rectangular

Packaging Details:

Wooden case Packaging

Highlight:

Automated pump control panel for BMS

Steel Control Panel For BMS System

BMS pump control panel

Product Description

Automated Pump Control Panel for Building Management Systems (BMS)

Product Specifications

IP Rating	IP54 IP55 IP65 IP66
Application	Building Automation, Industrial, commercial, and Process control
Material	Mid Carbon Steel / Carbon Steel / Stainless Steel / Aluminum Steel
Color	Silver or Others
Customization	Logo printing, size and color customization available
Mounting Type	Wall mount, pole mount, free standing
Usage	PLC control/Gate Pump Control Panel
Certifications	CE
Size	Various sizes available
Locking Mechanism	Key lock
Finish	Powder coated
Shape	Rectangular
Features	Durable, corrosion-resistant, weatherproof, dust proof

Key Features

Integrated Control: Synchronizes gate and pump operations for automatic/manual adjustment of water flow, level, or pressure
Status Monitoring: Real-time tracking of gate position, pump status, water level, and motor current via digital displays
Protection Mechanisms: Pump safeguards (overload, overcurrent, dry-running protection) and gate safety limit switches
Dual Operation Modes: Supports on-site manual control and remote management through 4G/Ethernet interfaces
Alarm Systems: Audible/visual alerts for faults (pump failure, gate jamming) and abnormal condition warnings

Design Specifications

Dimensions (mm)	Typical Applications	Examples/Notes
380 * 190 * 130	Dual-pump stations (1.5-4.8KW)	Models like DP-06A, DP1-08A
400 * 260 * 150	Small to medium pump systems	M1-4KW pump control box
600 * 1400 * 400	Motors (11-22kW); floor-mounted	Compatible with four water level sensors
800 * 600 * 400	Medium to complex gate pump systems	Integrated gate and pump control
1600 * 600 * 400	Vertical indoor cabinets	On-site and remote gate control
2000 * 2300*400	Large PLC cabinet-style LCU boxes	Pump station gate control

IP Grade

IP54 / IP55 / IP65 / IP66

Advanced Features: The system integrates AI-driven predictive maintenance via vibration and thermal sensors paired with machine learning, while adopting 5G and edge computing to enable real-time remote control and low-latency data synchronization. It features modular, IP67-rated stainless steel enclosures with solar and battery backup, alongside biometric and encrypted access combined with blockchain for secure operation logs. Additionally, adaptive control algorithms are incorporated to optimize gate and pump coordination.
