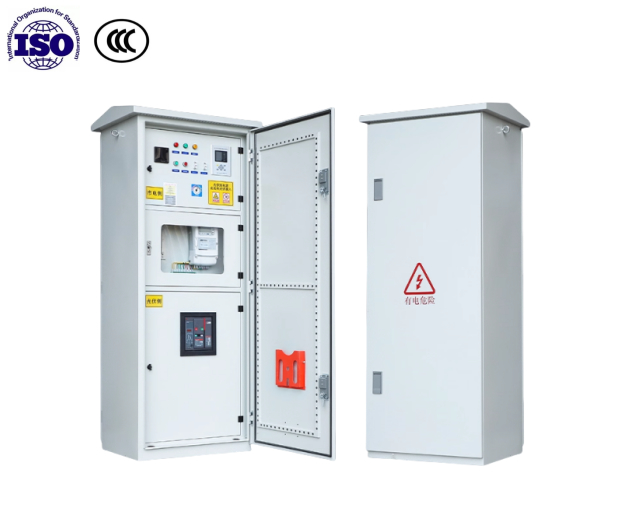

OEM Metal Outdoor PV DC Distribution Cabinet With Powder Coating Surface

Model Number:	JN 199811549
MOQ:	2
Price:	USD28-68889
Delivery Time:	15 days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001，CE

Features:

Durable, Waterproof, Fireproof

Usage:

Electrical Cabinet，PV Control Panel

Thickness:

1.5mm Or More

Accessories:

Hinges, Handles, Screws

Type:

Cabinet

Material:

Metal

Structure:

Single Door/ 2 Doors/more

Shape:

Rectangular

Installation:

Wall Mounted，free Standing

Surface Treatment:

Powder Coating

Lock Type:

Key Lock

Size:

Customizable

Color:

Grey Or Others

Packaging Details:

wooden case packaging

Highlight:

Outdoor PV DC distribution cabinet

OEM PV DC distribution cabinet

Powder Coating Surface PV Distribution Cabinet

Product Description

OEM Outdoor PV DC Distribution Cabinet with Maximum Power Point Tracking

Product Attributes

Attribute	Value
Usage	Electrical Cabinet, PV Control panel
Thickness	1.5mm or more
Accessories	Hinges, Handles, Screws
Type	Cabinet
Features	Durable, Waterproof, Fireproof
Material	Metal
Structure	Single Door/2 doors/more
Shape	Rectangular
Installation	Wall Mounted, free standing
Surface Treatment	Powder Coating
Lock Type	Key Lock
Size	Customizable
Color	Grey or others

Product Description

This OEM Outdoor PV DC Distribution Cabinet with Maximum Power Point Tracking is designed for various solar power applications, offering robust protection and efficient power distribution.

Key Applications

Utility-Scale Solar Farms: Centralizes DC power from multiple PV strings with overcurrent/arc-fault protection (1000V/1500V DC fuse holders)
Industrial & Commercial Rooftop PV: Reduces wiring complexity by combining 8-24 PV strings into one cabinet
Floating Solar Plants: Handles high humidity and salt spray near water bodies
Desert/Arid Regions: Withstands extreme heat (>50°C) and sandstorms
Hybrid PV-Storage Systems: Interfaces between PV arrays and DC-coupled battery systems

Specifications

Application Scenario	Typical Dimensions (W×H×D mm)	Capacity Range	Core Configuration
Small Commercial Rooftop	600×800×300	≤250kW	12-string input, fuses + surge protection
Standard Ground Power Plant	800×1200×400	250kW-1MW	24-string input, smart monitoring (RS485)
1500V High-Voltage System	1000×1500×500	1MW-2MW	36-string input, dual-layer copper busbar

Customization Options

Total DC input capacity
Number of protection devices
Ambient temperature range
Cable entry requirements

Materials

Aluminum alloy, stainless steel, carbon steel

IP Rating

IP54/IP55/IP65/IP66/IP67

Recommended Features

Modular Design: Expandable for additional strings or monitoring
Smart Monitoring: Optional IoT modules (4G/Wi-Fi) for real-time alerts
Compliance: Meets IEC 62548 (PV array safety) and UL 3703 (DC combiner standards)

Typical Configuration
