| Model Number: | Smoke Prevention & Exhaust System Control Box JK15641522 |
| MOQ: | 5 |
| Price: | USD28-68889 |
| Delivery Time: | 20 days |
| Payment Terms: | T/T,Western Union |

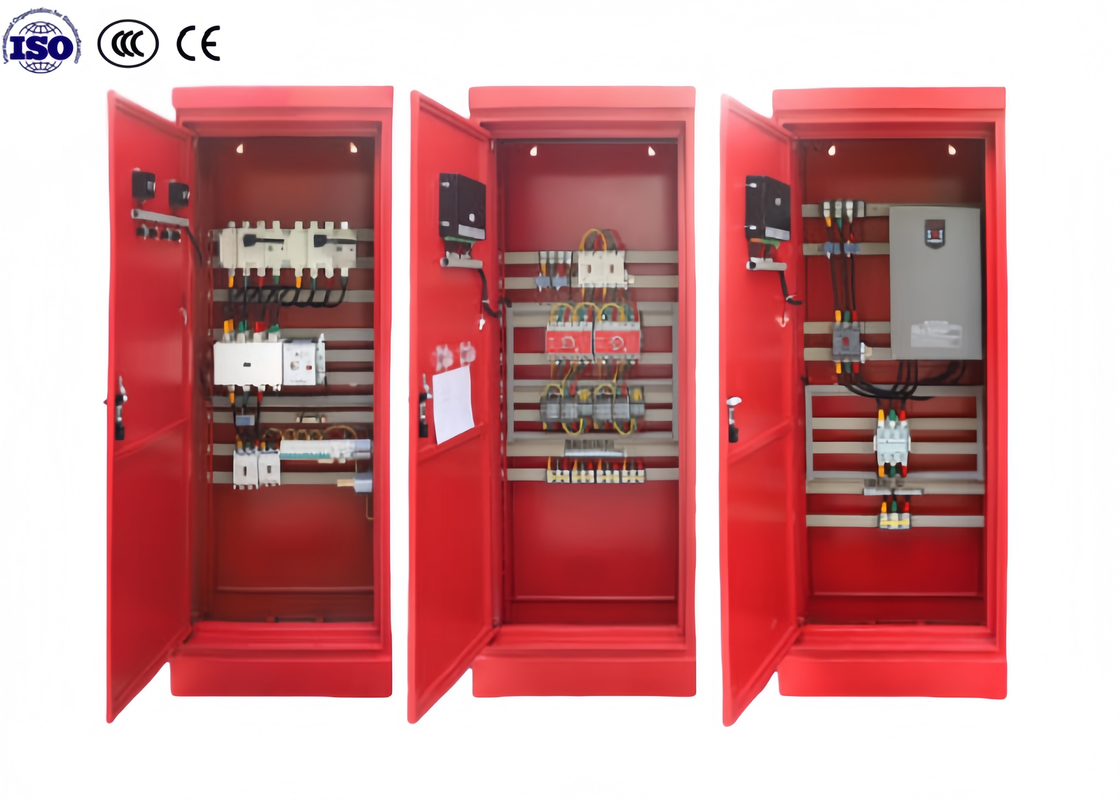

This control cabinet is designed to link and control smoke prevention fans, smoke exhaust fans, fire dampers, and smoke exhaust valves. It activates smoke exhaust and prevention processes during fire emergencies, ensuring visibility and safety in evacuation routes as a core component of building fire protection systems.
| Attribute | Value |
|---|---|
| IP Rating | IP54 IP55 IP65 IP66 IP67 |
| Application | Industrial, commercial, and Process control |
| Material | Mid Carbon Steel / Carbon Steel |
| Color | Silver or Others |
| Customization | Logo printing, size and color customization available |
| Mounting Type | Wall mount, pole mount, free standing |
| Usage | PLC control/Smoke Prevention & Exhaust System Control |
| Certifications | CE |
| Size | Various sizes available |
| Locking Mechanism | Key lock |
| Finish | Powder coated |
| Shape | Rectangular |
| Features | Durable, corrosion-resistant, weatherproof |
| Size (mm, W × D × H) | Application Scenarios |
|---|---|
| 300 × 400 × 200 | Compact spaces; controls small smoke prevention/exhaust equipment with few components |
| 400 × 500 × 200 | Limited spaces; accommodates more electrical components for moderate systems |
| 500 × 600 × 200 | Small buildings; supports multiple control modules for basic smoke control |
| 600 × 400 × 200 | Low-power, single-power smoke exhaust fans; basic fire linkage functions |
| 800 × 600 × 1800 | Medium/large buildings; centralized control for multiple smoke control equipment |
| 1200 × 800 × 300 | Large buildings/high-demand scenarios; advanced system management capabilities |
| Customization Area | Key Recommendations |
|---|---|
| Cabinet Design | Steel/stainless steel material (environment-dependent) with IP54+ protection; size adapted to space with 15%-20% heat dissipation space; door opening angle ≥90° |
| Electrical Configuration | Fire-fighting dual power switching, fire-resistant/mineral insulated cables; isolation and short-circuit protection; overload alarms without tripping |
| Function Settings | Linked automatic startup + manual/mechanical emergency startup; operation/fault status feedback to fire control room; regular testing function |
| Compatibility | Supports Modbus and other mainstream protocols; spare interfaces reserved; adapts to existing equipment terminal parameters |
| User Interface | LCD status display; touch screen + physical buttons for key functions (e.g., emergency startup) |
