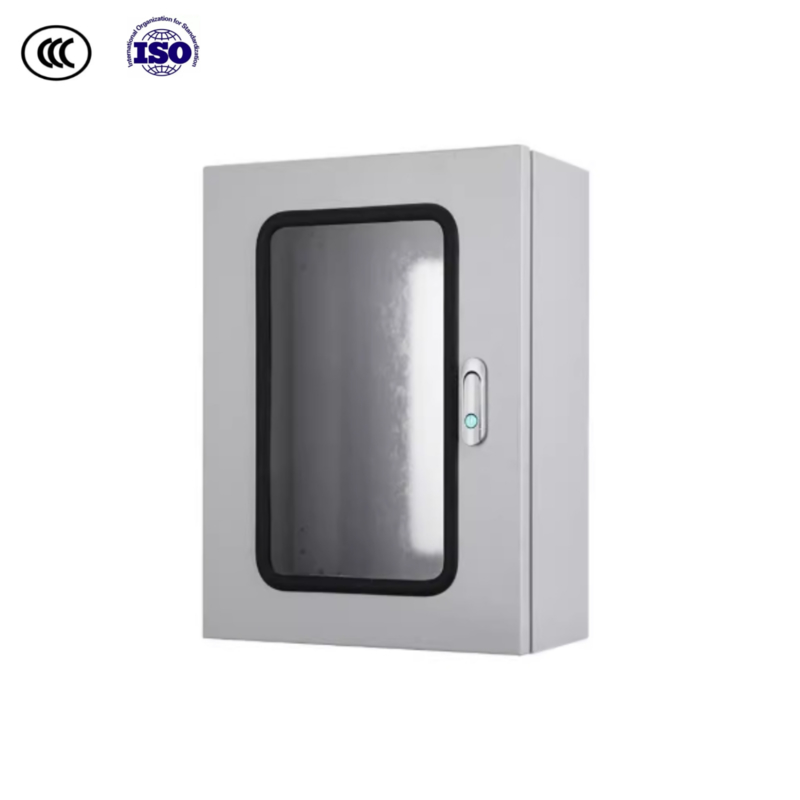

IP55 IP65 Metal Electrical Cabinet Enclosure With Viewing Window Outdoor Waterproof

Model Number:	Weitu Double Doors Control Desk
MOQ:	10
Price:	USD28-68889
Delivery Time:	15 Days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001，CCC

Shape:

Rectangular

Ventilation:

Yes

Size:

Customizable

Waterproof:

Yes

Weight:

Customizable

Usage:

Electrical Equipment Storage

Corrosion Resistance:

Yes

Material:

Metal

Installation:

Wall Mounted / Floor Standing/ Pole Mounting

Lock Type:

Key Lock

Number Of Doors:

1 Or 2

Fireproof:

Color:

Grey / Others

Packaging Details:

Carton

Highlight:

IP55 waterproof electrical enclosure

outdoor metal electrical cabinet

electrical enclosure with viewing window

Product Description

IP55 IP65 Electrical Enclosure with Viewing Window Outdoor Waterproof

Product Specifications

Attribute	Value
Shape	Rectangular
Ventilation	Yes
Size	Customizable
Waterproof	Yes
Weight	Customizable
Usage	Electrical Equipment Storage
Corrosion Resistance	Yes
Material	Metal
Installation	Wall mounted / Floor Standing/ Pole Mounting
Lock Type	Key Lock
Number Of Doors	1 or 2
Fireproof	No
Color	Grey / Others

Product Applications

Industrial control systems: For monitoring PLC, frequency converter operation status without opening the door.
Power distribution systems: Visual inspection of circuit breaker indicators and meter readings.
Transportation facilities: Railway signal cabinets and traffic light control boxes requiring status observation.
Renewable energy systems: Solar inverter enclosures and wind power control cabinets for parameter monitoring.
Public facilities: Street lamp control boxes and water pump station electrical cabinets for maintenance convenience.

Design Specifications

Enclosure Type	Size Range (Length×Width×Height, mm)	Typical Applications
Small-sized Control Boxes	300×200×150 ~ 500×400×300	Wall-mounted installations, compact control systems
Medium Industrial Enclosures	600×400×300 ~ 1000×600×500	PLC panels, frequency converter cabinets
Large Power Distribution Cabinets	800×600×400 ~ 1800×800×600	High-voltage distribution, complex control systems
Specialized Outdoor Enclosures	500×350×300 ~ 1200×600×500	Utility infrastructure, weatherproof applications

Material Options

Cold rolled steel
304 Stainless Steel

Customization Recommendations

Material Selection: Choose 304 stainless steel for coastal/chemical environments (corrosion resistance) or cold-rolled steel with powder coating for general industrial use (cost-effective). Thickness recommendation: 1.2-2mm for cabinets under 800mm, 2-3mm for larger enclosures.
Viewing Window Specifications: Use tempered glass (thickness ≥5mm) or polycarbonate (PC) panels (for impact resistance). Ensure IP65/IP54 rating for the window seal. Window size should cover 30-50% of the door area for optimal visibility without compromising structural integrity.
Heat Dissipation Design: Integrate louvered vents or filter fans if internal components exceed 300W heat output. Position vents away from the viewing window to prevent condensation on the glass surface.
Mounting Configuration: Pre-install DIN rails (35mm standard) and panel mounting plates inside. For outdoor use, add a sunshade overhang (≥100mm) above the viewing window to reduce glare and UV exposure.
Safety Features: Include lockable latches (padlockable optional) and ground terminals.
