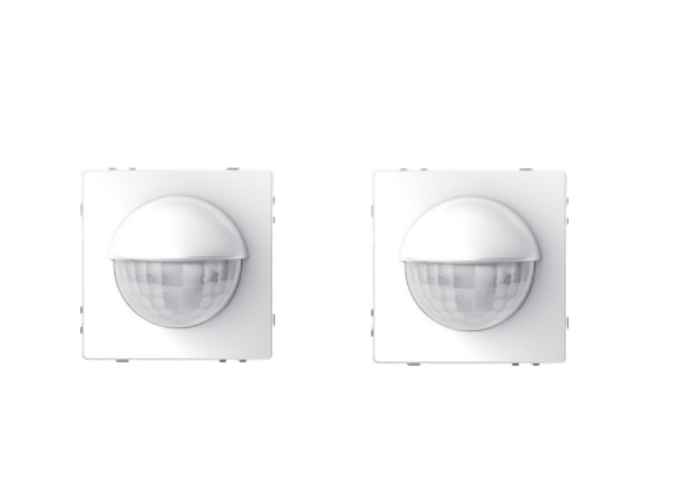

Schneider KNX ARGUS Presence With Light Control IR Receiver MTN644592

Name: Schneider KNX ARGUS Presence With Light Control IR Receiver MTN644592
Brand: Guangzhou Hengmeida Automation Technology Co., Ltd
SKU: KNX ARGUS Presence
Price: 175.00 USD
Availability: InStock

Brand Name:	Schneider
Model Number:	KNX ARGUS Presence
MOQ:	5
Price:	50-300USD
Delivery Time:	5 days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

Material:

ABS

Color:

White/Green

Packaging Details:

Carton

Highlight:

4 modules KNX ARGUS Presence

Schneider KNX ARGUS Presence

MTN644592

Product Description

Schneider KNX ARGUS Presence With Light Control IR Receiver MTN644592

About KNX ARGUS Presence:

1. KNX Software Functions

Dimming control: Supports different dimming curves, dimming speeds, and uniform dimming time

Memory & delay functions: Equipped with memory function, ON/OFF delay, and staircase time function (with/without manual OFF function)

Scene & central control: Allows storage/retrieval of up to 8 scenes (with stored brightness values) and offers central control function

Advanced logic: Features logic operation, priority control, and blocking function

Status & recovery: Provides real-time status feedback and preset behavior settings for bus voltage recovery

2. Device Specifications

Switch contact: Used for switching electronic ballasts/transformers

Nominal voltage: AC 230 V, 50-60 Hz

Nominal current: 16 A, cosϕ = 0.6

Switching capacity: AC 230 V, 3600 W, cosϕ = 1

Capacitive load: AC 230 V, 16 A, 200 µF

Load compatibility (by lamp type):

Incandescent lamps: AC 230 V, max. 3600 W

Halogen lamps: AC 230 V, max. 2500 W

Fluorescent lamps: AC 230 V, max. 3600 VA (uncompensated); AC 230 V, max. 2500 VA (with parallel compensation)

LV-halogen lamps (with wound transformer): max. 2000 VA

0-10 V interface: Current range 0.12-100 mA; Voltage range DC 0-10 V

Device width: 4 HP (approx. 72 mm)

Package contents: Includes bus connecting terminal and cable cover

KNX Software Functions

Switching, dimming or blind control via 1 or 2 inputs
Positioning values for blind control (8-bit)
Pulse edges with 1-, 2-, 4-, or 8-bit telegrams
Differentiation between short/long operation
Initialisation telegram
Cyclical sending
Pulse edges with 2-byte telegrams
8-bit linear regulator
Disable function
Break/make contact
Debounce time

Model Comparison

Specification	MTN644492	MTN644592
Quantity	4	8
Number of Modules	2.5 modules	4 modules
Function	Connects traditional buttons or floating contacts	Connects traditional buttons or floating contacts
Installation Location	Cabinet	Cabinet
Terminal Type	Plug-in screw terminals	Plug-in screw terminals
Voltage-Related	-- / 10 V	-- / 10 V
Current-Related	-- / 2 mA	-- / 2 mA
Others	--	50 m
