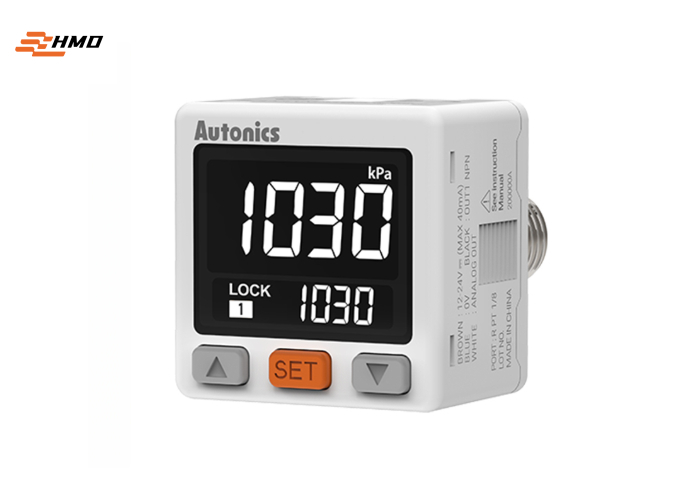

| Brand Name: | Ottonius |
| Model Number: | PSK1-C1C-R1/8 |
| MOQ: | 5 |
| Price: | 14.8 USD |
| Delivery Time: | 5 days |
| Payment Terms: | T/T |
| Attribute | Value |
|---|---|
| Series | PSK1 |
| Engine Size | STD |
| Stock Status | In Stock |
| Mounting Type | Through Hole |
| Part Name | Pressure Sensor |
| Output Resistance | 700±5Ω |
| Description | SENSOR CURRENT HALL 130A AC/DC |
| Item No | 3BSE008516R1 |
| Auxiliary Power Supply | 30VDC |
| Polarization | Bidirectional |
| Accuracy | ±0.01mm |
| Dimensions | 30(W) x 21.3(D) x 30(T) mm |
| Replacement No | Excavator |
| Specification | Details |
|---|---|
| Pressure Type | Compound Pressure |
| Rated Pressure Range | -100 ~ 1,000 kPa; -100.0 ~ 100.0 kPa |
| Set Pressure Range | -103 ~ 1,030 kPa; -103.0 ~ 103.0 kPa |
| Withstand Pressure | 1.5 MPa; 500 kPa |
| Applicable Gas | Air, non-corrosive, non-flammable gas |
| Power Supply Voltage | 12 - 24 VDC ± 10%, Ripple P - P ≤ 10% |
| Current Consumption | ≤ 30 mA (no load) |
| Control Output | Output Type: NPN or PNP collector open output Load Current: ≤ 125 mA Internal Pressure Drop: ≤ 1.0 V Response Time: ≤ 2.5 ms |
| Display | White (Sampling speed: 200 ms, 500 ms, 1000 ms optional) Display Accuracy: ± 1% F.S. ± 1 digit Repeat Error: ± 0.3% F.S. ± 1 digit |
| Operating Environment | Protection Grade: IP 40 Operating Ambient Temperature: 0 ~ 50°C Storage Temperature: -10 ~ 60°C |
| Connector Specification | Lead wire (oil-resistant PVC, Ø4 mm, 3 cores, 0.15 mm²) |
| Pressure Port | R1/8 |
| Material | Front Housing: PA66 + G15% Rear Housing: PA66 + G15% Pressure Port: Brass - Nickel Plated |
| Certification | CE |
| Weight | ≈ 62 g (including 2m wire) |
