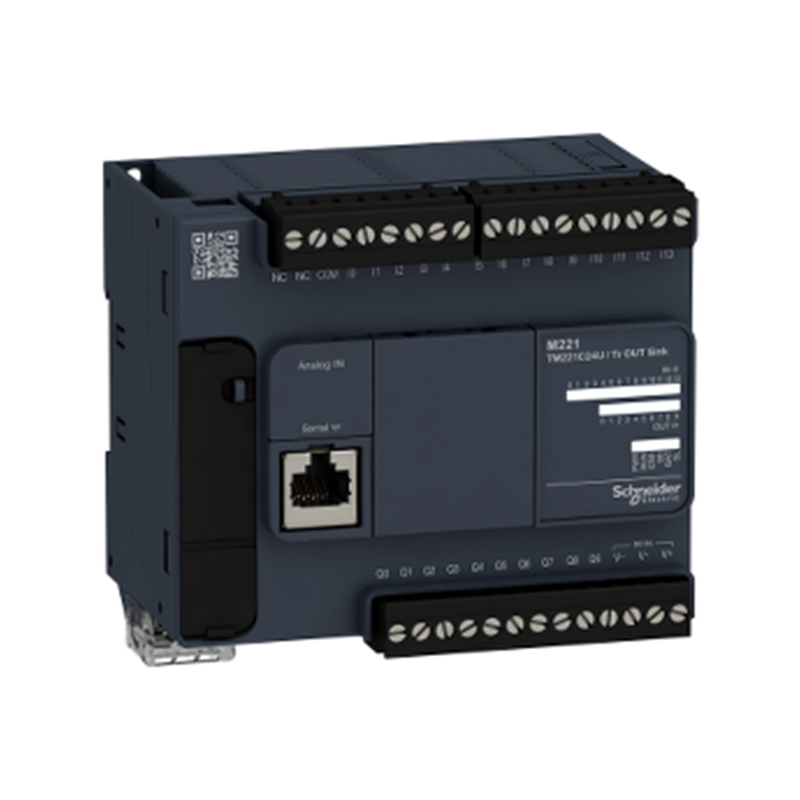

| Model Number: | Schneider PLC Modicon M221 TM221C24R |
| MOQ: | 1 |
| Price: | USD28-68889 |
| Delivery Time: | 7 days |
| Payment Terms: | Western Union,T/T |
| Category | Item | Specifications |
|---|---|---|
| Power Supply | Supply Voltage | 100-240Va; 24Vc; 24Vc |
| Input/Output | Logic Input/Output | 16 Logic Inputs/Outputs (repeated) |
| Input Quantity and Type | 9 Sink/Source 24Vc Inputs (including 4 High-speed Inputs) | |
| Output Quantity and Type | 7 Relay Outputs; 7 Source-type Transistor Outputs (including 2 High-speed Outputs) | |
| Digital Input/Output Connection | Removable Screw Terminal Blocks | |
| Analog Input | 2×0...10V Analog Inputs | |
| Analog Input Connection | Dedicated Removable Connectors | |
| I/O Expansion Module | Max. Connectable I/O Expansion Modules |
|
| Built-in Communication | Ethernet Communication | 1 built-in Ethernet port supporting Modbus TCP (Client & Server), DHCP, EtherNet/IP Adapter, programming and monitoring |
| Serial Communication Port | 1 RS232/485 port (RJ45) with +5V power supply | |
| Process Control | PID functionality | |
| Functions | Counting | 4 High-speed Counter Inputs (100kHz frequency) |
| Position Control | Position Control Pulse Train Output (PTO) with trapezoidal and S-curve acceleration/deceleration, supports multiple control modes | |
| Dimensions | Width×Height×Depth | 95×90×70mm (3.74×3.54×2.75in) |
| Options | Expansion Boards |
|
